Offline System / Module Configuration Screen Tabs / ConveyMerge /

Conventional Spur Merge Example	ConveyLinx ERSC ✅	ConveyLinx-Ai 24V ✅	ConveyLinx-Ai 48V ✅
	ConveyLinx-ECO ✅	ZPA Mode ✅	PLC I/O Mode ❌

In this example we are going to configure the Left Line to be standard spur angle merge onto the Center Line and we will set the Merge Priority to be First Come First Served

*Images show ConveyLinx-ERSC modules but functions are applicable to all ConnveyLinx module

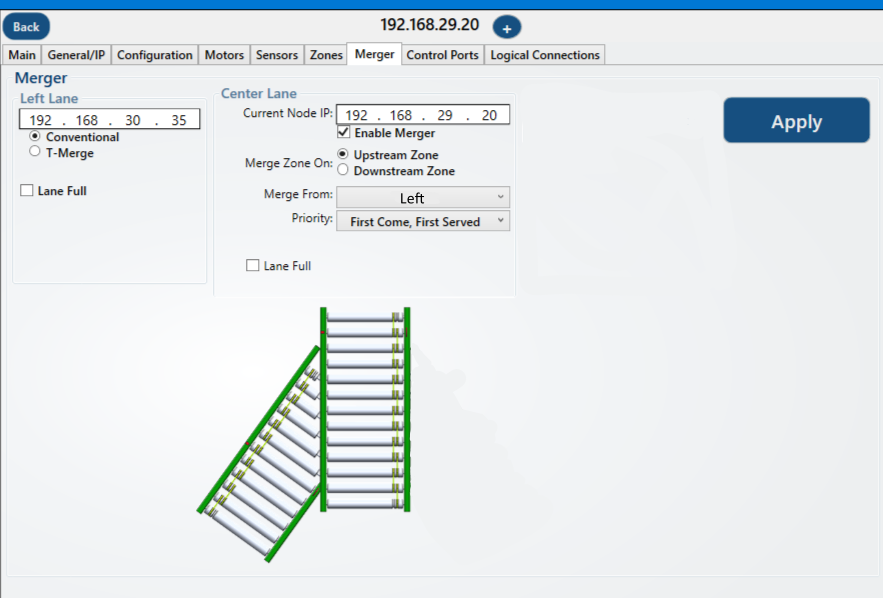

The Merge Zone is the upstream zone of the module at 192.168.25.28 and the most downstream ConnveyLinx module for the Left Line is at 192.168.24.31. Here is the ConveyMerge Configuration Screen with these values entered

The last step is to click the Apply button to send the changes to the affected *ConnveyLinx module*s

*Please note that after clicking the “Apply” button, if the configuration has changed, the affected modules will reboot. It will take a few seconds for the reboot to finish and some or all of the affected zones may briefly run their motors
