Connections for a Subnet	ConveyLinx ERSC ✅	ConveyLinx-Ai 24V ✅	ConveyLinx-Ai 48V ✅
	ConveyLinx-ECO ✅	ZPA Mode ✅	PLC I/O Mode ✅

With your motors and sensor connected to your individual ConveyLinx module, you will need to connect the Ethernet network cabling from module to module in a daisy chain fashion. The most upstream module in the direction of flow is node 1.

*Please note that the Flow is based upon the Ethernet cable routing during the Auto-Configure Procedure. The Flow direction cannot be changed or over-ridden. The only way to change the Flow direction is to perform another Auto-Configuration Procedure

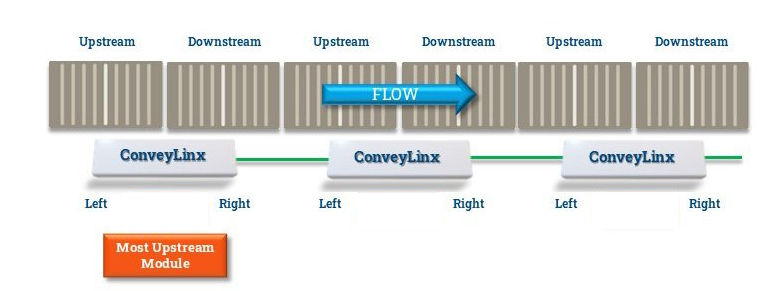

Subnet with Left to Right Flow:

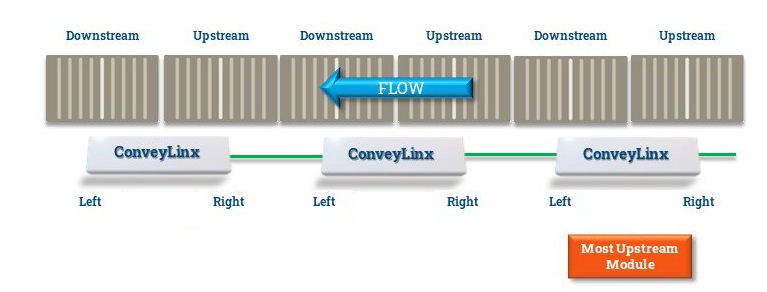

Subnet with Right to Left Flow:

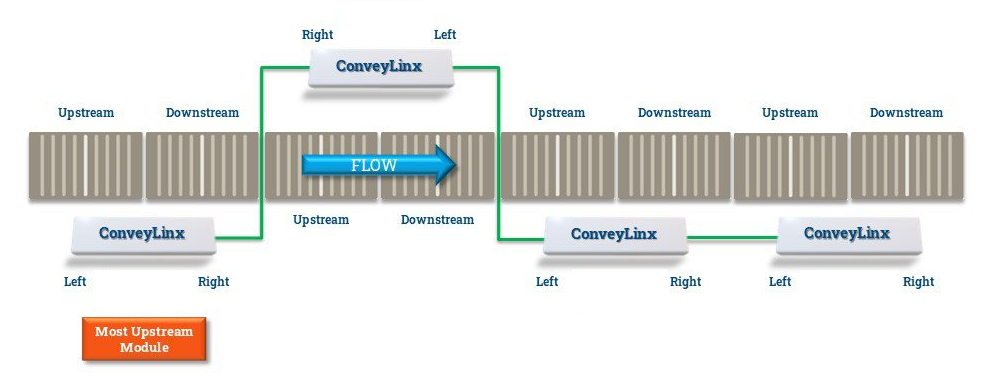

Subnet showing one module on the opposite side of conveyor:
