Firmware

ConveyLinx ERSC ConveyLinx-Ai 24V ConveyLinx-Ai 48V
ConveyLinx-ECO ZPA Mode PLC I/O Mode


The Firmware screen displays all Firmware that has previously been added, and allows you to add any additional Firmware.


Item Function Description
Firmware
  • Click to open the Firmware screen
  • Tree expands to show all Firmware currently saved from your PC
  • Right clicking allows you to add firmware without navigating to the Add New Firmware button
Add New Firmware
  • Opens dialog for you to select a new Firmware file to load from your PC
  • Firmware names are vital and should not be altered


Add New Firmware

As shown below, selecting the “Add New Firmware” button will open the file viewer for your computer. Navigate to the firmware you’d like to add and select it.

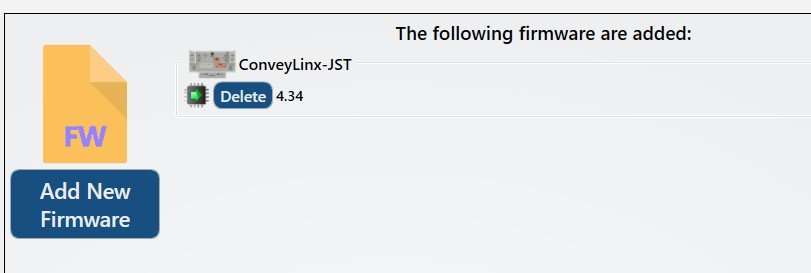

This is what the firmware look like in the Firmware viewer. Note that the module type and version number are specified in the list.
