Module Configuration Screen Tabs /


Diagnostic Log

ConveyLinx ERSC ConveyLinx-Ai 24V ConveyLinx-Ai 48V
ConveyLinx-ECO ZPA Mode PLC I/O Mode

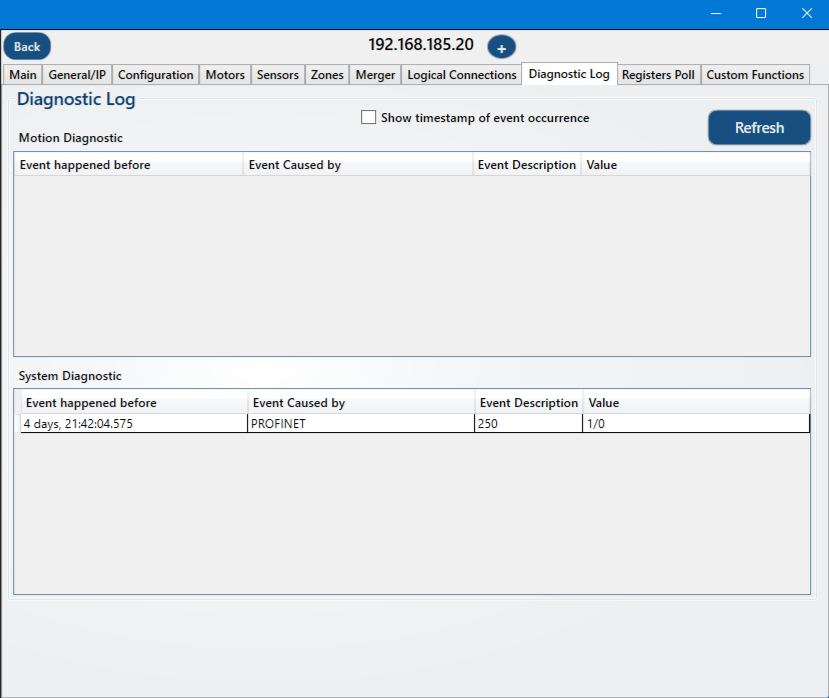

Diagnostic Main Screen without Timestamps

The “Diagnostics Log” tab shows both the Motion and System separately. You may choose to see the timestamp on each event, or to refresh the log. Not all events are necessarily negatively impactful.

Diagnostic Main Screen with Timestamps

This example shows a fuller log with timestamps, note the scroll bar on the right of each window

Some log items are normal circumstantially, consider the sensor flicker above. If you observe the sensor being triggered when nothing appears to be triggering it, you may need to reevaluate what the sensor can “see” or how well connected the sensor is to the system. Other items like miniscule peer reconnects over modbus are unlikely to be negatively impactful unless the time span of disconnection is concerning.
