License Manager

Using FlexiCAD 4 License manager

Access the license manager from the ‘?’ toolbar and select ‘View License.’

Or, go to Windows Start Menu and select the application ‘Flexijet Licensemanager.’

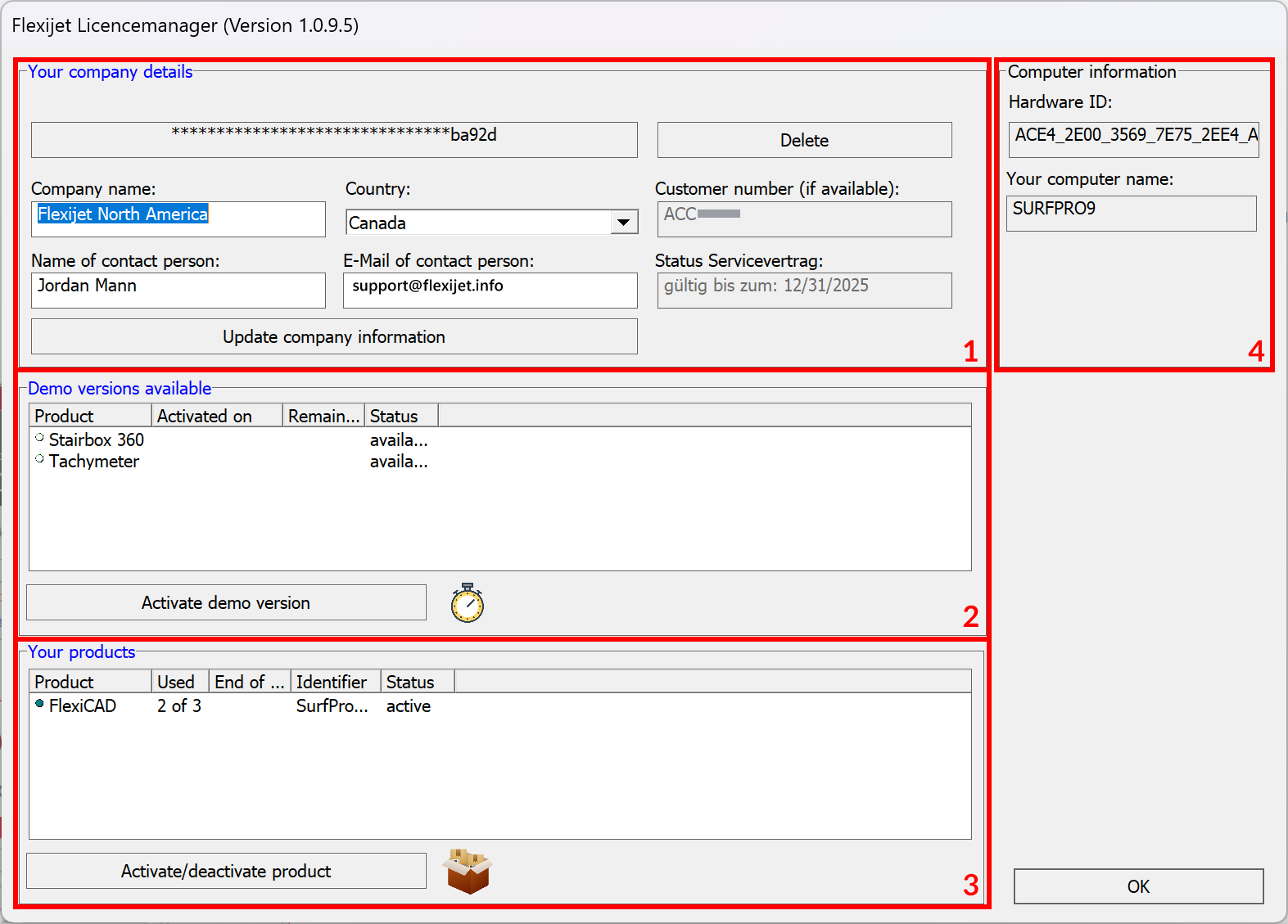

The license manager will be divided into 4 sections:

(1) Your Company Details.
(2) Demo Versions that are Available for you.
(3) The products that you have activated.
(4) Current computer information.

Company Key Info

A company key is a unique identifier created for a company to which software seats are assigned and can be activated.
Only one company key should be created per company – additional installations should use the same company key.

To remove a company key:

Open the license manager
Then click on the Delete button under ‘Your Company details.’
A message will pop up asking if you really want to delete it; click “Yes.”

Activating a Demo Version

For activating a demo version of FlexiCAD:

(1) Select FlexiCAD from the “Demo versions available.’
(2) Then Click Activate demo version.

In this section, you can see the days remaining on the demo version you activated.

Activating a software seat

You can easily activate your license once you receive an email saying that it is ready to be activated.

An internet connection is required to enter this permanent license and activate the software. Open FlexiCAD 4 and click ‘OK’ on the general preference screen.
Input your ‘Company Key’ to activate FlexiCAD and click ‘OK’.
The License Manager will open. Ensure your company details are good.
- (1) In the section ‘Your products’, select FlexiCAD by clicking on it.
- (2) Press the ‘Activate/deactivate product’ button.
Then type an Identifier for your device and press okay.
A message will pop up saying the software is ready.
