How to use Auto-Dimension

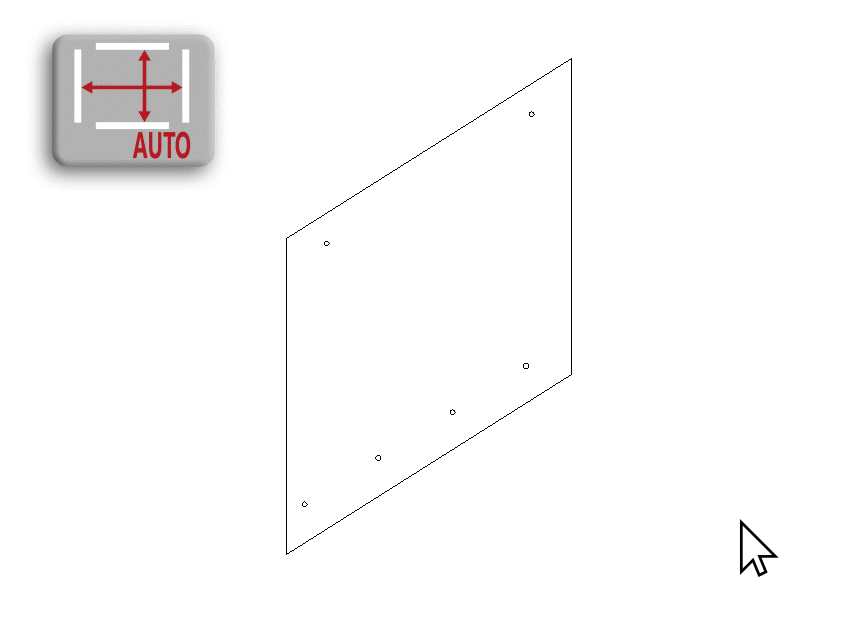

- Activate the command Auto dimension from the measurement ribbon.
![]()
- The selected folder and all subfolders are automatically dimensioned.
Note: You can activate auto dimensioning on an individual folder, the entire room, or the construction project at any time, including during a measurement. You just need to be positioned in the desired folder.
To remove all the dimensions generated
- Simply click on Remove auto dimension.
![]()
- All dimensions generated before will be removed.
Options for autodimensions
- Under the drop-down menu for Auto dimension, click on the options for auto dimension button.
![]()
- Several options can be adjusted from this window.
![]()
| Length dimensions |
- Length dimensions:
Enables or disables the creation of automatic length dimensions. If unchecked, no length dimensions will be added.
- Only dimension closed contours:
When enabled, dimensions will only be applied to shapes that form a closed loop (e.g., rectangles, polygons, circles). If unchecked, open lines can also be dimensioned.
- Only dimension lines of this length range:
Let’s you limit automatic dimensions to objects within a specific length range.
- Minimum: The smallest length (in inches) to be considered for automatic dimensioning.
- Maximum: The largest length to be considered.
- Smart dimensions for closed contours:
- Include radius in length dimensions:
Ensures that if the contour includes arcs or rounded corners, their radius is also dimensioned.
Choose the style that will be used for length dimensions.
|
| Angle dimensions |
- Create angular dimensions:
Enables automatic dimensioning of angles between intersecting lines.
Choose the style that will be used specifically for angular dimensions.
|
| Radial dimensions |
- Arcs:
Automatically applies radial dimensions to arcs.
- Circles:
Automatically applies diameter or radius dimensions to circles.
Define the formatting style for radial dimensions.
|
*The dimension style “autodim” is used for auto dimension. If this style is not available (for example, with a template drawing), it is
Created automatically.
*NOTE: Dimensions created using the Auto-Dimension command are generally not used for production. For finalized dimensions, it is recommended to create dimensions individually using the appropriate dimension command (Horizontal, Vertical, Angular, etc.).
