Multiple Lines (2 colors)

This function is available from the dropdown menu under ‘Multiple lines’ on the ‘Draw’ ribbon.

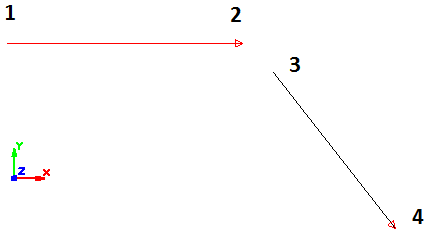

With ‘Multiple lines (2 colors), the first line is created in another color.

This function is used for measuring stairs, for example, whereas the first line is the tread front edge.

The colour of this first line can be changed in the General Preferences > CAD Preferences > Multiple Lines First Color

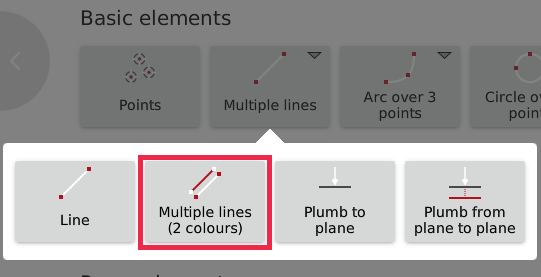

This function can also be selected on the Flexijet’s Touchscreen by long-pressing ‘Multiple lines’
