4.3. Motor and Logic Power

Regardless of the specific ConveyLinx-Ai Family Modules, each is equipped with the ability to separate the Motor power from the Logic power.

Connecting only Motor Power

*Connecting only to Motor Power will provide power to both the motor circuits and the logic circuits.

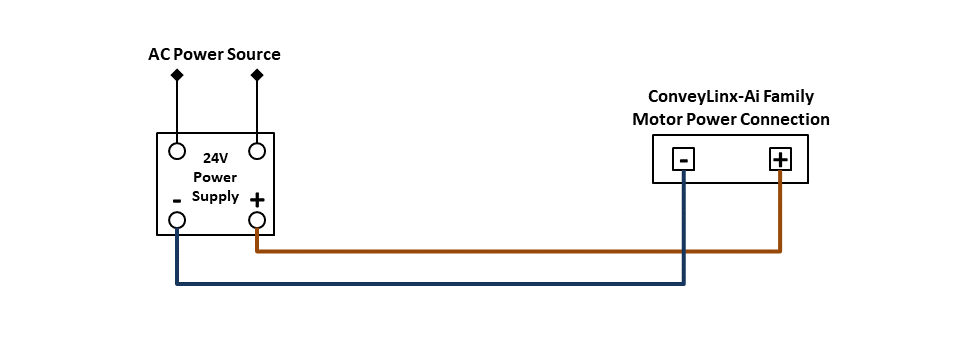

Typical Motor Only Power Connection Diagram

Connecting Motor Power and Logic Power Separately

*Providing a separate power connection to the Logic Power, you can keep the logic and communications powered and active and disconnect the Motor Power to assure all motors are disconnected such as in an E-Stop situation

Typical Separate Motor and Logic Power Connection Diagram
