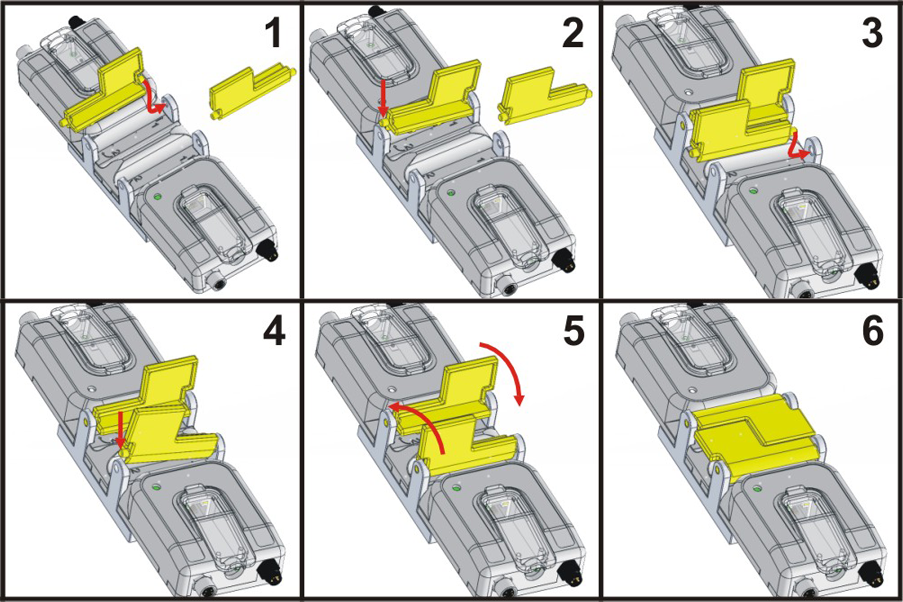

The assembly procedure is the same for either the ConveyLinx-Ai3-FC module or the ConveyLinx-Ai3-24-RC module. Once the cabling is properly seated in the mounting mounting bracket, the main module unit snaps into the bracket and the module clamping brackets are installed and closed as shown:
