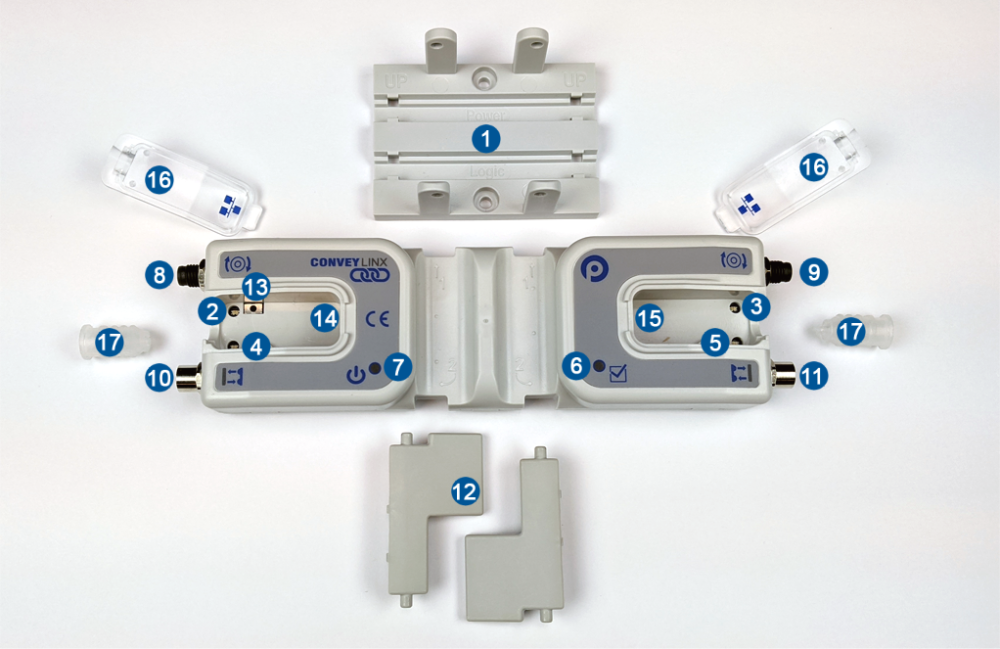

Item Description
Mounting Bracket with FC cable routing channels
& Motor Left LED & Motor Right LED – Motor status indicators
& Left Sensor & Right Sensor Status LED Indicators
Module Status LED Indicator
Module Power LED Indicator
& Motor Left and Motor Right Port – 4-pin M8 style connector for MDR connection
& Sensor Left and Sensor Right Port – M8 style connector for zone photo-sensor connection
* Module Clamping brackets
Module Replacement Button
& Link Left and Link Right – RJ-45 style Ethernet network connection between modules including LED Indicators
Removable IP54 Ethernet RJ-45 Port Compartment Cover – Left and Right
* IP54 Protection Shrouds for Ethernet cabling and power wiring
  • Indicates items shipped unattached to the modue but are included in the module’s box
