All settings can be stored onto SD Memory Card, including voltage and current set points, alarm thresholds, and relay configuration.
To copy ATevo Configuration to SD Memory Card:
MENU > SAVE:RESET SETTINGS > ‘Backup to Memory Card’
The screen will briefly confirm the file was copied successfully. The configuration file is written to a file named ATgvai00.EVO where:
- ‘g’ specifies charger family: (1) Single Phase <= 25 A, (2) Single Phase > 25A, (3) = 3 phase 16-1000 Adc.
- ‘v’ specifies dc voltage: (A) = 12V, (B)= 24V, ( C ) = 48V, (D) = 130V, (E) = 260V.
- ‘a’ specifies dc current: ( C ) = 16A, (E) = 25A, (F) = 30A, (G) = 40A, (H) = 50A,
(I) = 75A, (J) = 100A, (K) = 125A, (L) = 150A, (M) = 200A, (N) = 250A, (O) = 300A, (P) = 400A, (Q) = 500A, ® = 600A, (S) = 800A, (T) = 1000A - ‘i’ specifies charger iD (A-Z): per SYSTEM INFO menu.
You may use this saved configuration file to:
- restore configuration in case someone inadvertently changes a setting and doesn’t remember the original setting.
- clone configuration to a similar charger to eliminate need to set up parameters manually.
- configure a replacement Main Control Board (A1) automatically.
To copy ATevo Configuration from SD Memory Card to the Main Control Board (A1):

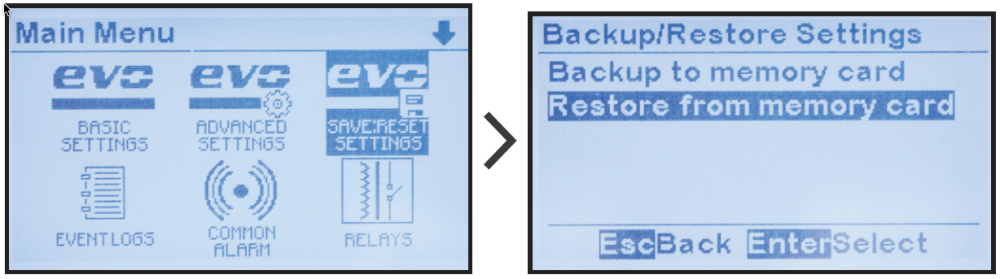

MENU > SAVE:RESET SETTINGS >’Restore from Memory Card’
The screen will briefly confirm the file was copied successfully. The charger will restart with the restored configuration settings.
