4.10.1. Setting Up Ground Fault Alarm Sensitivity

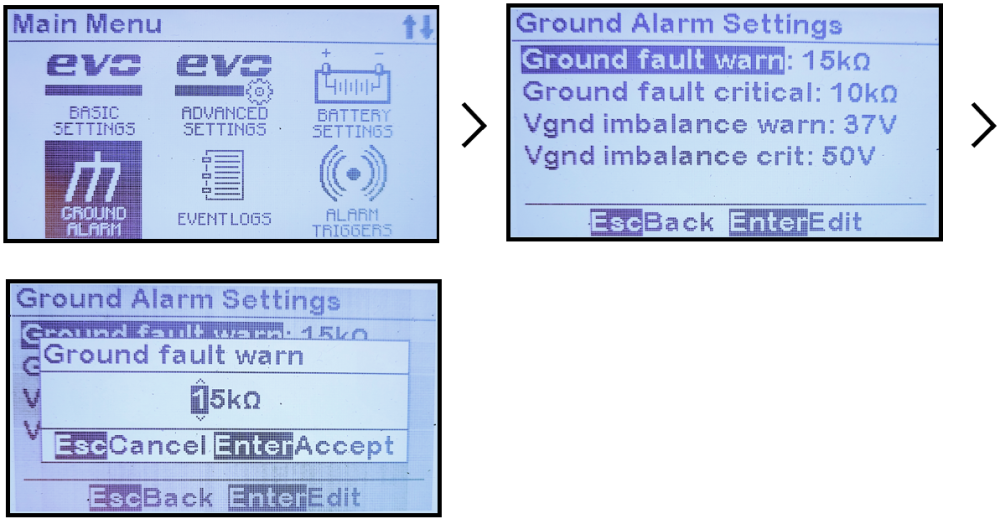

To change the resistance values (measured in kOhm) of the ground fault alarm sensitivities:

MENU > GROUND ALARM > ‘Ground Fault Warning’ > adjust value > EDIT/ENTER to accept value

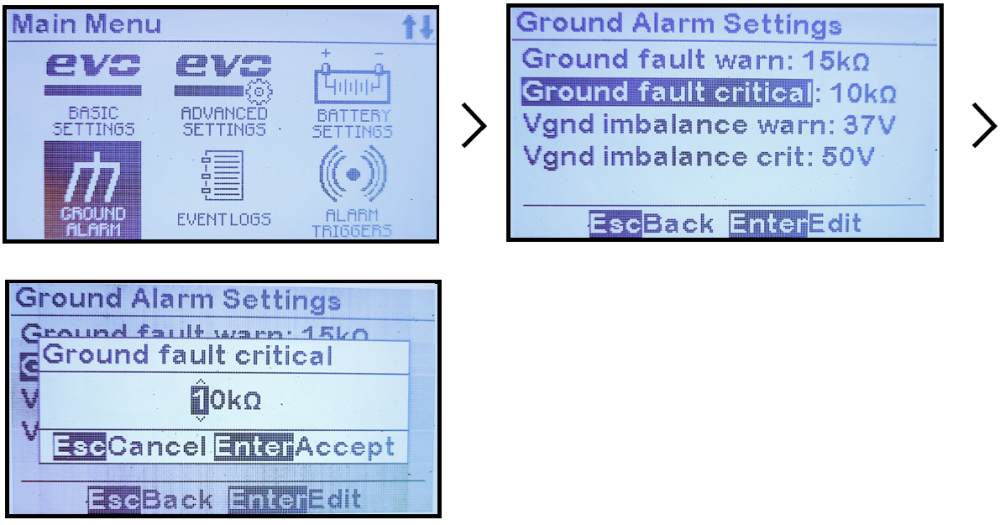

To change the resistance values (measured in kOhm) of the ground fault critical:

MENU > GROUND ALARM > ‘Ground Fault Critical’ > adjust value > EDIT/ENTER to accept value

*To increase the ground alarm sensitivity, lower the kOhm value. To decrease the sensitivity, raise the kOhm value.
