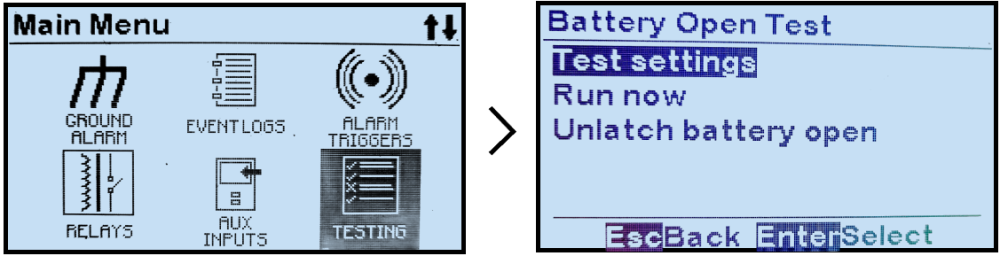

To access and configure Battery Open Test settings:
MENU > TESTING > ‘Test Settings’

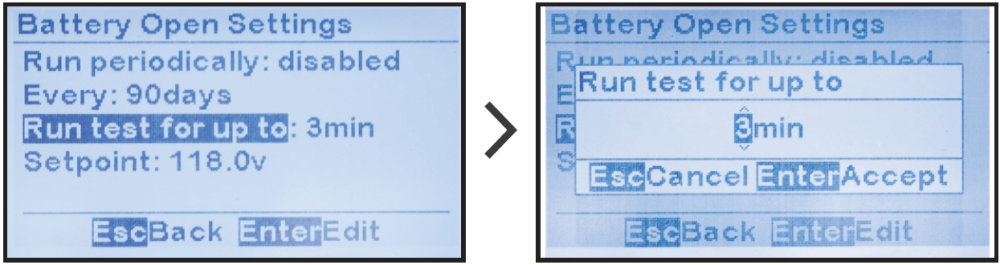

To configure test duration:
‘Run test for up to:’ > adjust duration

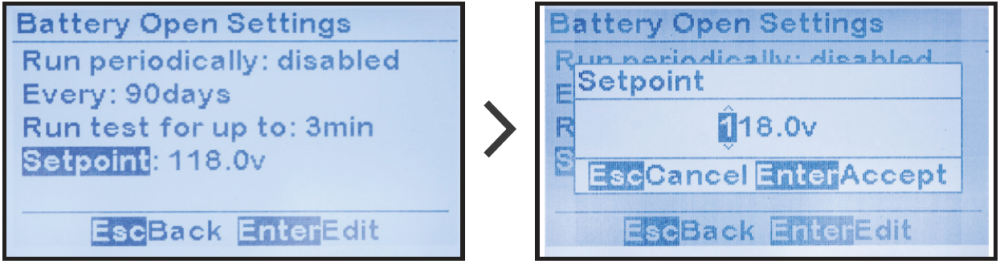

To configure the voltage set point at which to terminate the test if no battery is present:
‘Setpoint’ > adjust voltage
