Each Lightning Conductor Web Part can be configured to use a caching mechanism that increases the performance of the Web Part. This is useful when the Lightning Conductor Web Part is aggregating content from a large number of lists and when you want to increase the speed the Web Part rolls up results and displays them in the user’s browser. This minimizes the number of round trips from a Microsoft® SharePoint® server to the SQL Server® content databases each time the Lightning Conductor Web Part is displayed on a page.
The Lightning Conductor Web Part uses a caching engine instance. There is one predefined caching engine instance, Global Engine, which cannot be deleted. Caching engine instances can be configured and additional caching engine instances can be created.
Each time a Lightning Conductor Web Part (LCWP) is added to a page you can configure it to use a LCWP caching engine. A SharePoint server administrator can configure or create LCWP caching engine using the following steps:
- In the browser, open Microsoft SharePoint 2013 Central Administration web site. On the Quick Launch click System Settings, and then under Farm Management, click Configure LightningTools caching engine.
![Configure Lightning Conductor Caching Engine]( "Configure Lightning Conductor Caching Engine")
The LightningTools Caching Engine Settings page is displayed, which by default displays the settings for the Global Engine caching instance. - If you want to configure a different caching engine instance or create a new caching engine instance, select the down arrow to the right of Global Engine and select Change Engine Instance
![Change Engine Instance]( "LightningTools Caching Engine Settings page")

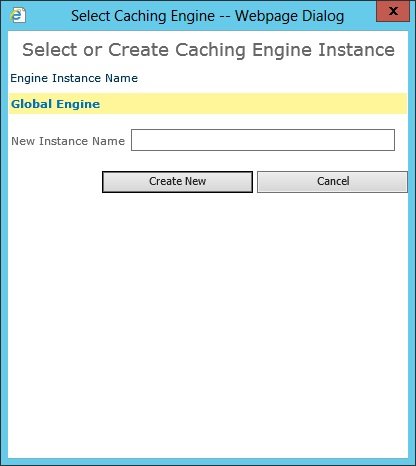

The Select Caching Engine — Webpage Dialog is displayed.![Select Global Engine or create a new Caching Engine Instance]( "Sect Caching Engine - Webpage Dialog")
- Click the caching engine instance you wish to configure or in the New Instance Name text box, type the name of the new instance and then click Create New.
- Amend the caching settings for each instance as described later on this page.
- At the bottom of the LightningTools Caching Engine Settings page, click Save.
![Cick the Save button at the bottom of the page to save your Caching Engine Instance configurations.]( "Invalidate Delete Save Cancel buttons")
To clear the cache, at the bottom of the LightningTools Caching Engine Settings page, click Invalidate. To delete the caching engine instance click Delete. This option is not displayed for Global Engine.
Caching Engine Instances
You only need additional instances of the LCWP caching engine if the caching properties required by the Lightning Conductor Web Part are different. The properties of the LCWP caching engine are described in the following sections. Theoretically each LCWP can use their own instance of the LCWP caching engine or you can configure several LCWP to use a specific instance of a LCWP caching engine as shown in the following diagram.
For example, you may have added the LCWP multiple time on the same page or on different pages. Some of the Web Parts may be using the caching engine, some of the Web Part will not. Those Web Parts that are using caching may require the caching engine to handle checked out items, while other part Web Parts do not. In this scenario the only solution is to have two caching engines. The first caching engine should have the Handle Checked Out Items check box selected, and the second checking engine should not have the check box selected. The first set of Web Parts should use the first caching engine and second set of Web Parts should use second caching engine. In other words, several instances of the caching engine are required when some of the LCWP require different caching engine settings than other LCWPs.
Query Running Context
By default when caching is enabled on a SharePoint Lightning Conductor Web Part the data source query is run twice in the context of Web Application super user and super reader accounts. Metadata about SharePoint Server objects, such as SPWeb, SPSite, SPList, etc., are saved in the object cache using these accounts. The Access Control List (ACL) of the current user is then used to display data from the cache that they have permissions to – security trimmed.
By selecting Use current logged in user context check box, the current user account is used by the data source query and the results of the query are saved in the cache. Each user will have their own copy of the resulting data in cache, which has resource implications. When queries are run in the context of current user context, the settings in the Item Limit Multiplier and Handle Checked Out Items sections are not applicable and will be greyed out.

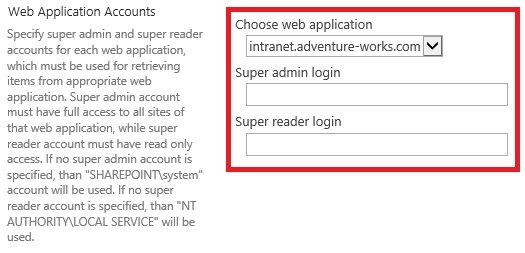

Web Application Accounts
When the Use current logged in user context check box is not selected then the data source query uses the Web Application super user and super reader accounts. (Note: These are not to be confused with Microsoft’s Portal Super User and Portal Super Reader accounts) It is assumed that the super user account sees all versions of all items, including draft versions, and the super reader account sees only published versions of all items, when the list is configured not to allow readers to see draft versions. By default, when no value is provided in the Super admin login and the Super reader login text boxes, the caching engine instance will use the site’s System Account as the super user account and “NT AUTHORITY\LOCAL SERVICE” as the super reader account. You can provide accounts for the super user and super reader accounts for each web application.
For the caching engine to work correctly no items should be checked out to the super user and super reader accounts, as when a query that includes these items is made, the checked out version of the item is returned instead of the latest published version.

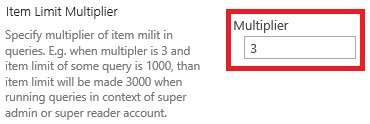

Item Limit Multiplier
On the Data Source tab for the Lightning Conductor Web Part you may have specified many different data sources and therefore the Web Part may need to execute a SharePoint query against many site collections and sites during the rollup process. In the Item Limit Multiplier text box, type an integer value, the default being 3, that is used to limit the content return for each SharePoint data source query. The value in this text box is only applicable when you type a value for the Lightning Conductor Web Part in the The Limit Amount of Items Return To text box in the Miscellaneous section on the Data Source tab.
For each SharePoint query, the LCWP caching engine limits the number of items returned to the number generated by multiplying the Limit Amount of Items Return to value to the Item Limit Multiplier value. This allows the caching engine instance to execute queries in context of super admin account and in context of super reader account, thereby allowing the Web Part to retrieve the necessary items from the cache for each type of user when needed.

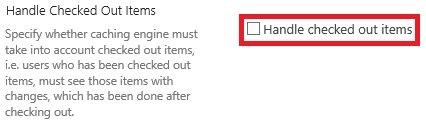

Handle Checked Out Items
By default, when Handle Checked Out Items check box is not selected the latest published items are returned from the data source query, even for users who have checked out the items. When the Handle Checked Out Items check box is selected, the query retrieves the value of checked out items.
Use the SharePoint Change Log
Select the Use Log check box when you want the caching engine instance to detect changes to SharePoint object by using the SharePoint change log. The default is not to use the change log.

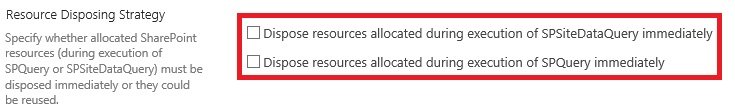

Resource Disposing Strategy
Use the two check boxes in this section to specify when the caching engine instance disposes of resources allocated during execution of data source queries:
- Dispose resources allocated during execution of SPSiteDataQuery immediately
- Dispose resources allocated during execution of SPQuery immediately
The default is to reused the resources allocated during the query, that is, the resources are not released immediately.
Memory Limit
In the Memory Limit text box, type the amount of memory, in megabytes, which can be allocated by the caching engine instance for storing cached objects. The default is to specify no value, that is, there is no memory limit for caching engine instance. When memory limit is exceeded, the caching engine instance will remove some cached objects from the cache in xxx order to free part of allocated memory.
