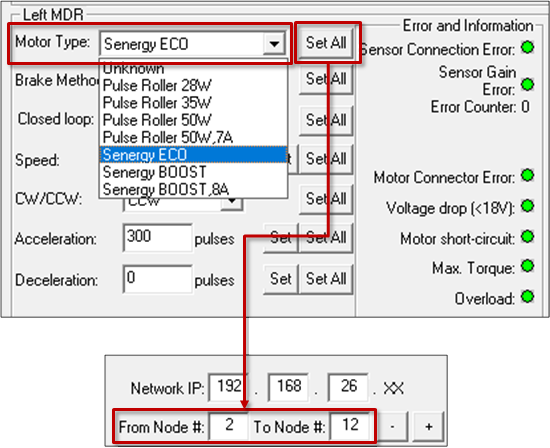

The Motor Type drop-down box lists all motor brand and types whose profiles are available for the module. Senergy ECO is the default setting upon completion of the Auto-Configuration Procedure. The new settings are downloaded to the selected Node upon selecting a new item from the list.
| Selecting a Motor Type from the drop down box immediately makes the change for the current Node. Clicking Set All will download the selected setting to the Left MDR of all modules entered in the range of Nodes at the top of the main screen in the From Node # / To Node # boxes. In our example, the From Node # / To Node # boxes have the values of 2 and 6. Changing the selection in the Motor Type drop down will change Node 2 and then by clicking Set All it will change Nodes 3 thru 12 to the same setting as Node 2 |  |
