Both of these ports are standard RJ-45 jacks conforming to standard Ethernet connection pin-out.

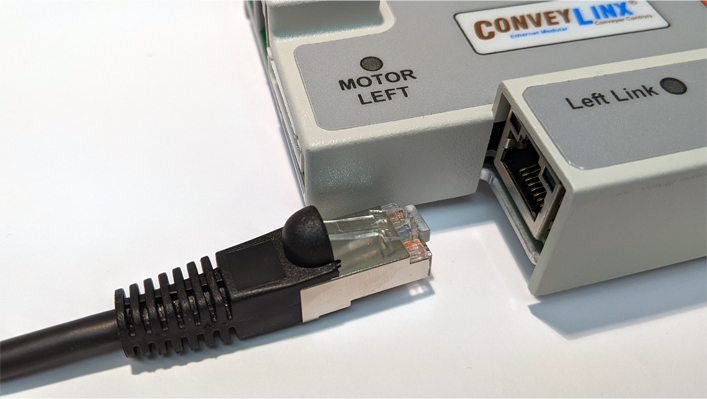

RJ-45 Cable and Ethernet Port

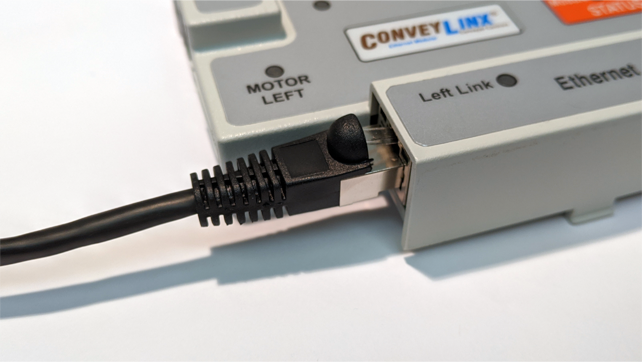

RJ-45 Cable Plugged in

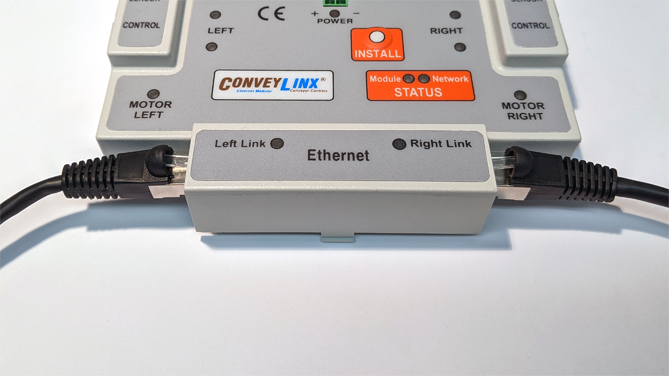

Both Left & Right RJ-45 Cables Plugged In
Both of these ports are standard RJ-45 jacks conforming to standard Ethernet connection pin-out.
RJ-45 Cable and Ethernet PortRJ-45 Cable Plugged inBoth Left & Right RJ-45 Cables Plugged In!All Hardware Revision 1 ConveyLinx-ERSC Module must use Ethernet shielded crossover style cables. Hardware Revision 2 and later modules can use straight or crossover shielded Ethernet cables. Failure to use SHIELDED cables may result in data loss and unexpected results
