Network

Check the ISP Modem

1. Check if the ISP Modem has Internet Connection.
- A small LED often indicates that the modem has internet connection.
- The LED is often called Link or DSL, if unsure please call the ISP Provider.

2. If the ISP Modem has Internet Connection proceed with the guide.

3. If the ISP Modem do NOT have Internet Connection Please call the Technician Hotline.
- New Shop / Renovation : + 45 99 42 43 40

Connecting the Aruba

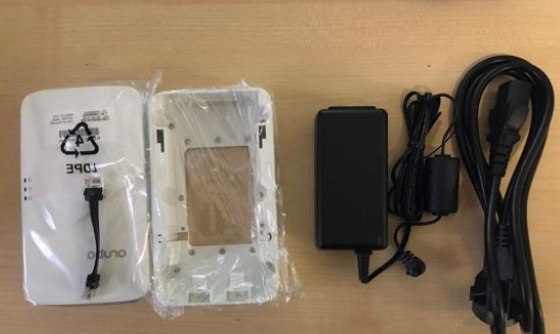

4. Unpack the Aruba Hardware:
- Wall mount
- Short patch cable (black flat)
- Power Adapter
- Power Cable

5. Connect the short Black Patch Cable to the Back of the ARUBA.

6. Connect the Wall Mount to the Back of the Aruba.

7. Connect a RED LAN cable from Port E0 on the ARUBA to the ISP Modem.
- For Norway always connect the ARUBA to port number 1 in the ISP Modem.
- For Sweden always connect the ARUBA to port 4 in the ISP Modem.

8. Connect the Aruba to Power

6. Connect a RED LAN Cable from the Aruba E1 to the Switch.
.

7. After 15 min the Aruba will be Online, and 2 LED will be Green.
- Please continue with the guide, while waiting for the Aruba to come online.
