SmartSensor within SmartView
When within the device view by clicking on the device further information can be seen. The main view consists of different areas that can be divided as follows:

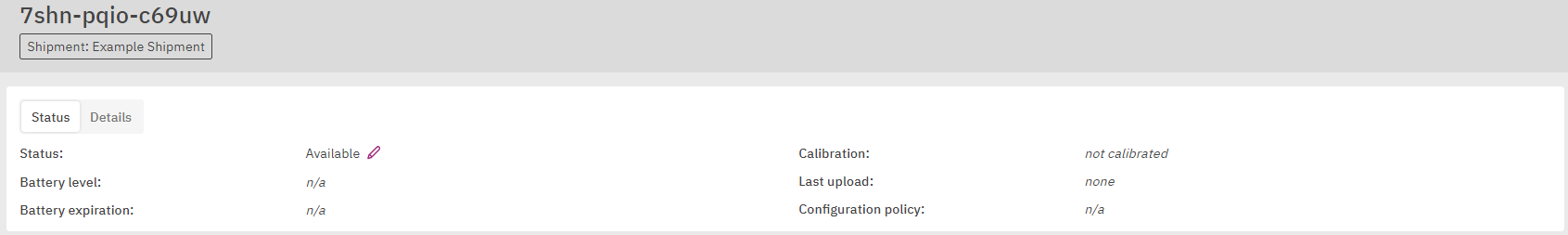

Status/details
Within this view the current status of the device is visible, this includes information like the currently applied policy as well as other information. Besides that, the current status itself can be set as well as either enabled or disabled. If a device is disabled it will not stop the device from operating but it will prevent the device from being used in new shipments, sectors or TCI.
While the out of service setting can be useful to mark a device that has become unusable. This may happen because the device is broken or got lost during transport. Once a device is set to out of service it can not be reverted.
If the device itself is currently associated to a sector or a shipment the current association is visible below the serial number of the device.

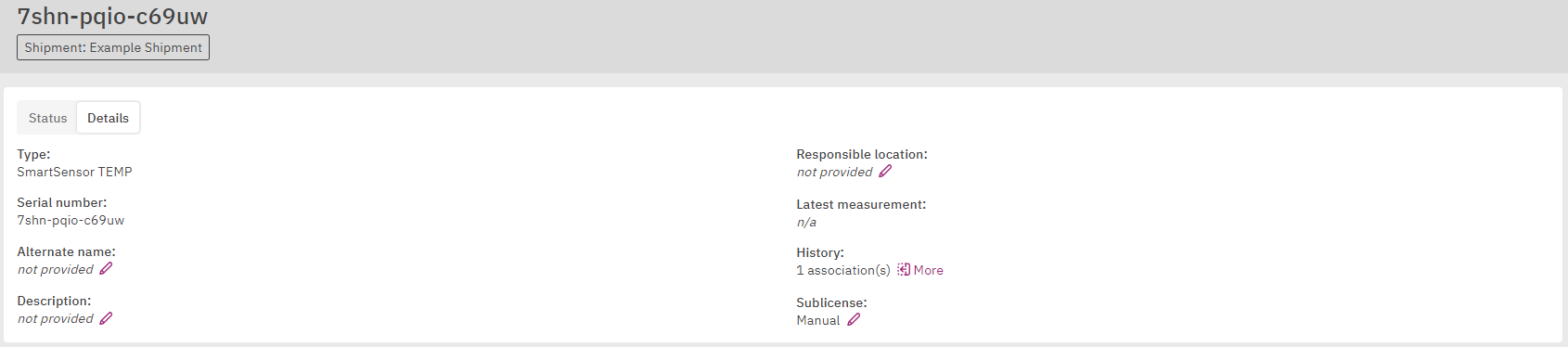

By clicking on the Details button it can be switched to a different window which will contain further information as well as an additional data field that can be customized to match personal needs.

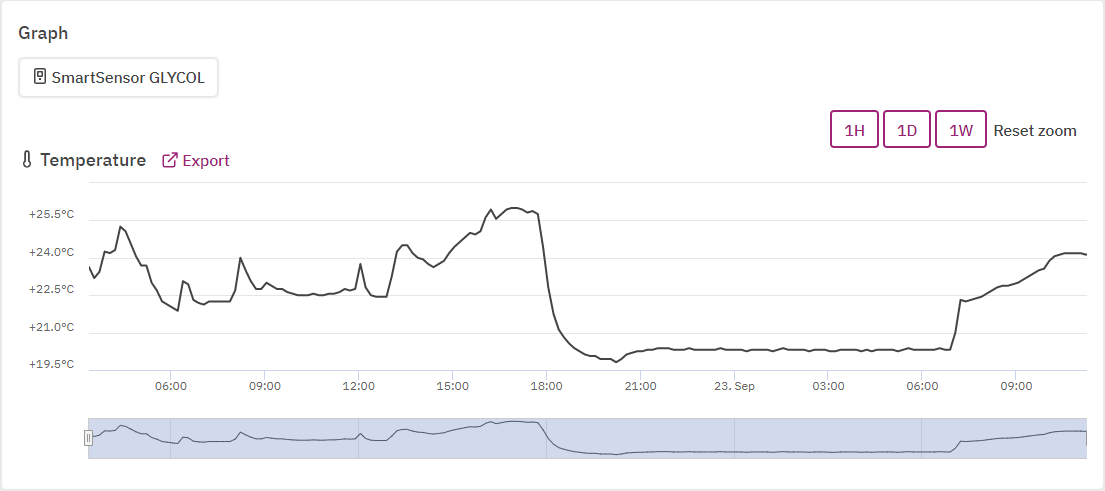

Graph
Below that the graph can be found. Each observed metric is displayed with its own graph and each graph consists of two parts the main graph as well as a small zoomed-out overview for orientation below it.

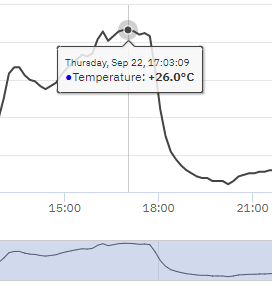

By hovering over a specific area within the graph further more detailed information can be displayed.
In addition, the graph can also be downloaded as a png image by use of the
button beside the Graphs title.
