A sector is a monitored area, e.g. containers, refrigerators, warehouses, work facilities.

Step	SmartView Function	Actions	Result
1	New Sector	Select: Name of location
2		Create Sector	Function to setup a new sector: - Name - Description - Data source as “Device data” or “Manual data” and define the start date.
3		Save

Create a Sector

Create a Sector

Create a Sector

To create a sector, click on the button in the Location:

Choose a name for your sector and/or a description and select if the sector shall be used with a device or with manually entered data. Please be aware that once the sector is set for Manual data the action can not be reversed. Afterwards confirm the entries by pressing OK.

Modify Storage Conditions

Modify Storage Conditions

You can choose a storage condition for your sector which you have predefined under Site Settings / Storage Conditions.

Add a Device Association to a Sector

Add a Device Association to a Sector

Choose the sensors that you would like to associate to the sector, by clicking on the Associations Tab – then click on the Create Association button.

After creating a sector, you can associate a device to it by clicking on the button as shown in the following image:

Click in the serial no. field to choose your device for the sector.

Select or modify the start date and click on

You can repeat this process for as many devices as you would like to add to your sector.

Add an Alarm Profile to Sector

Add an Alarm Profile to Sector

Before adding an alarm profile to the sector, make sure you have created a profile with appropriate alarm rules.

Adding an alarm profile to a sector can be done from the modify screen of the sector:

Click on the Alarm profiles tab in the modify screen:

Click on the Monitoring Disabled/Enabled button to enable alarm monitoring and select an Alarm Profile from the dropdown list:

Click on to save your changes.

Offline notification

Notification for a sector

When sector offline monitoring is enabled SmartView will send email notifications to SmartView users. This functionality can be configured for each sector, including time interval and recipients.

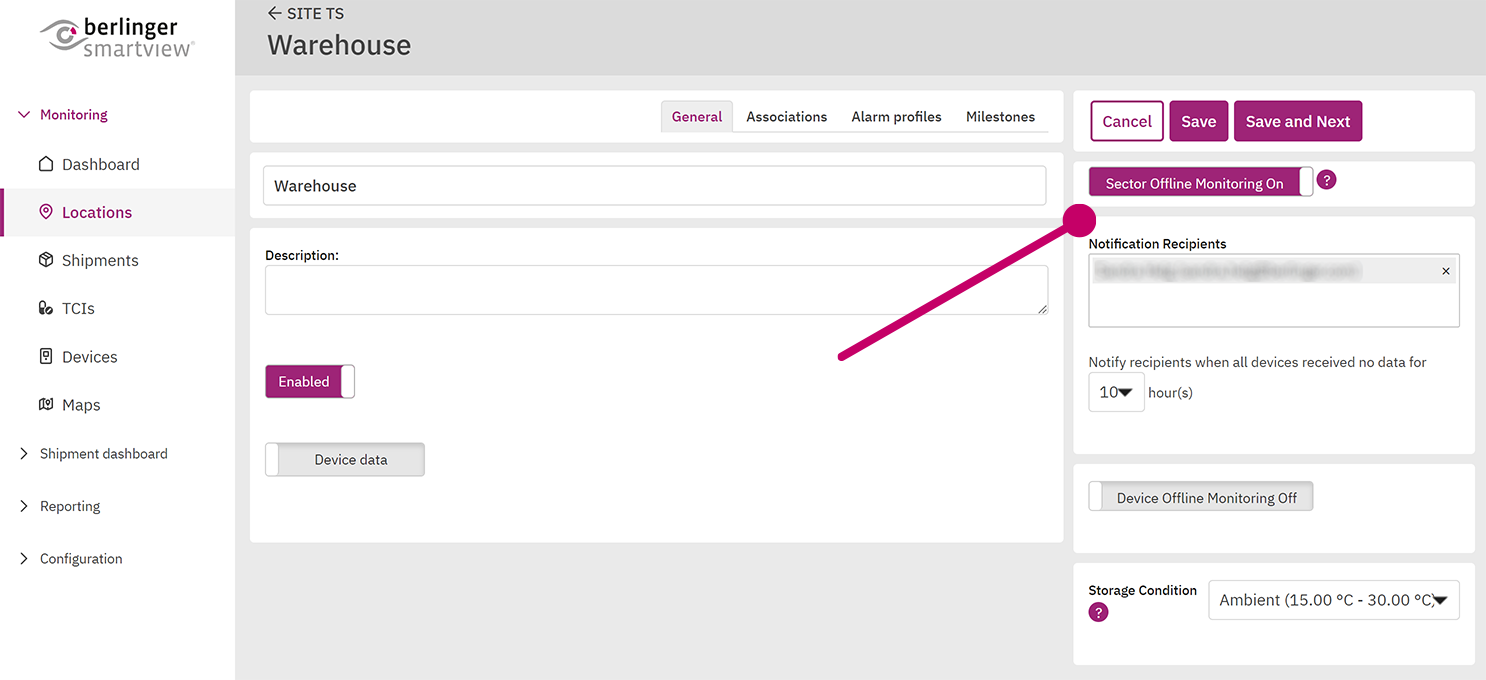

Press Modify Sector and Sector Offline Monitoring ON/OFF
:

Notification for a device

When no device measurements are received from the sector for the user-defined period.
This functionality can be configured for each sector, including time interval and recipients.

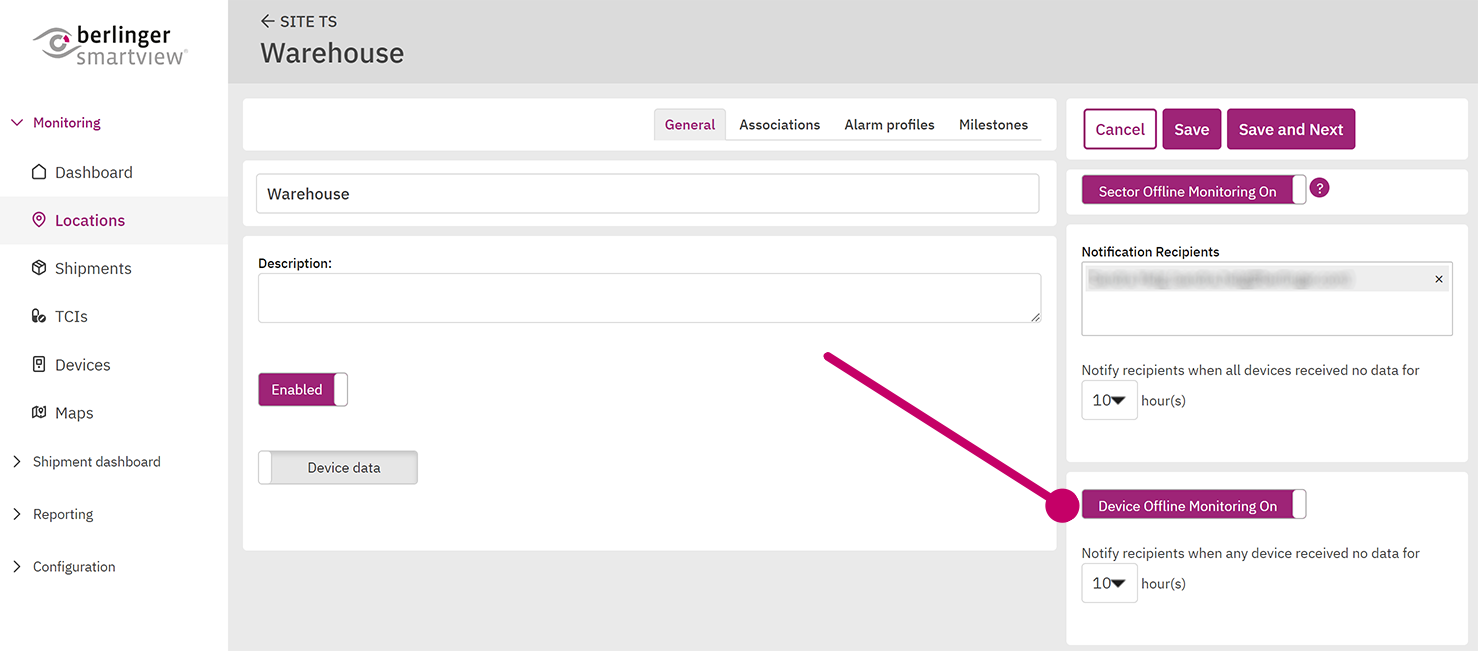

The notification for devices can be set ON or OFF.
If it is ON the notification will be sent to the user-defined above within the notification recipients.

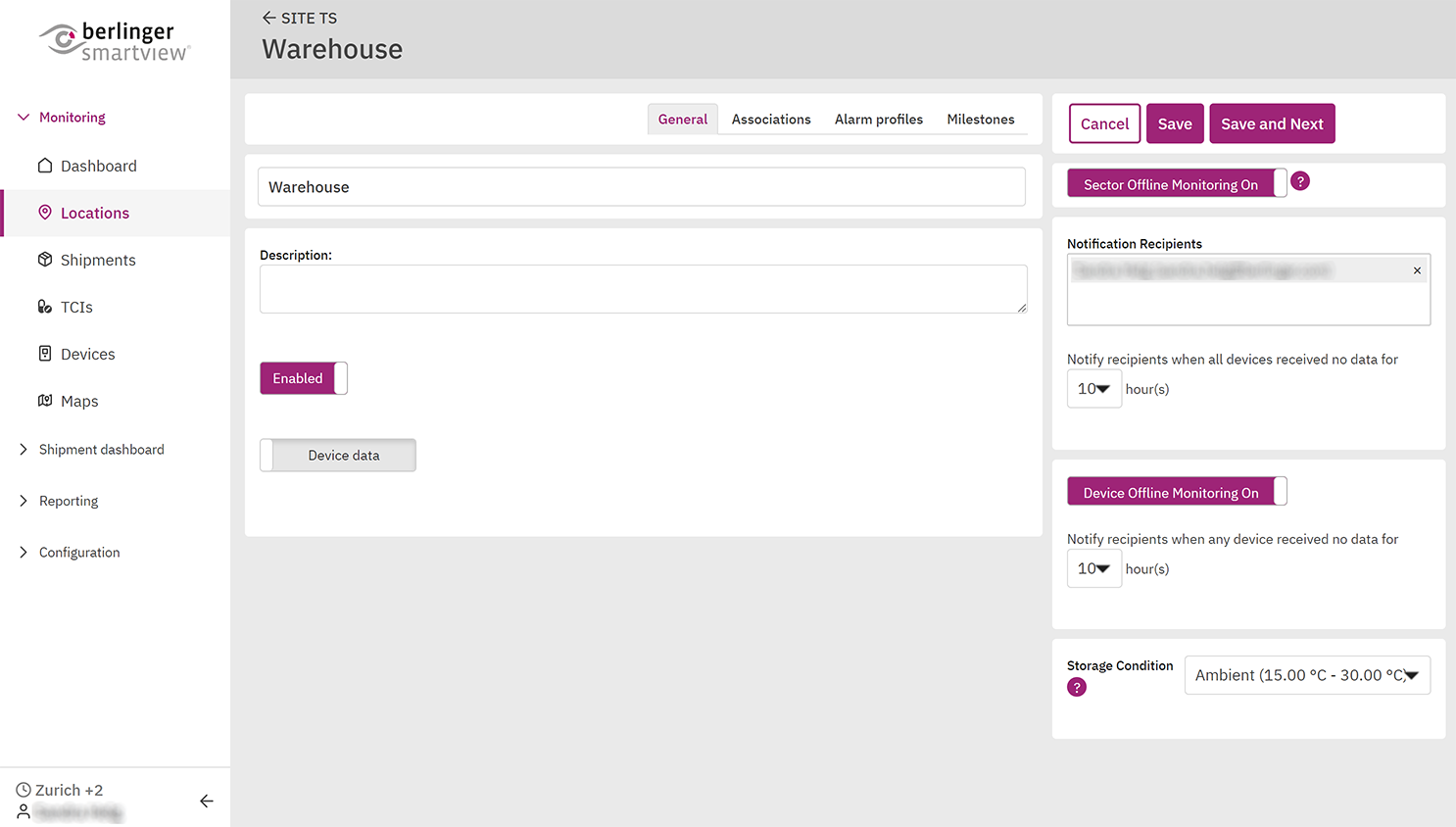

Modify a Sector
