Stand Alone Operation / EasyRoll+ Motor Configuration Screen /

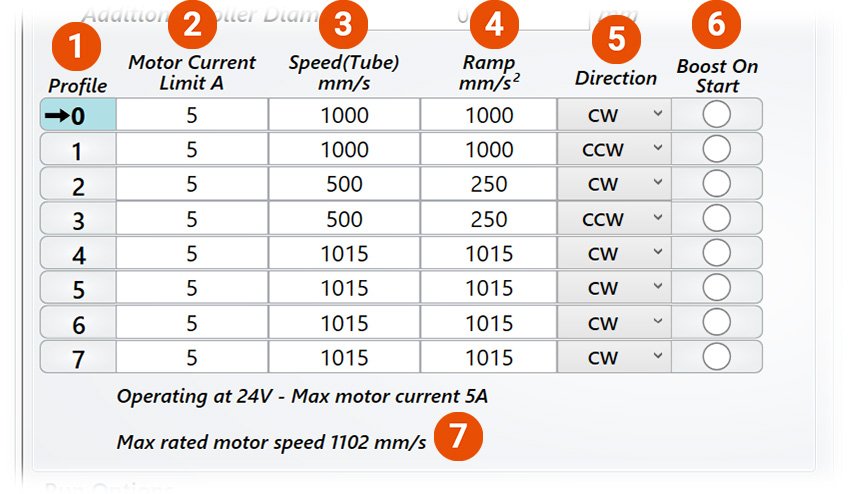

Profiles
| Item | Function Area | Description |
 |
Profile Selector | ● Click one of the 8 Profile Numbers to select the current active profile ● Only Profiles 0 thru 3 are available with hardwired inputs |
 |
Motor Current Limit | ● Enter motor current limit for the selected profile ● Current value in turn limits available torque ● Maximum value for 48V power input is 8A ● Maximum value for 24V power input is 5A |
 |
Speed | ● Enter motor roller tube speed in the displayed units ● Maximum speed limited by the attached motor ● Speed is adjusted based upon any increase defined in Units area ● Speed units are selectable in the Configuration Area |
 |
Ramp | ● Enter accel/decel ramp in the displayed units ● Same value is used for both accel and decel operation ● Units used are set in the Configuration area |
 |
Direction | ● Select the default motor rotation direction ● See Motor Direction topic for how to define rotation direction |
 |
Boost onStart | ● Click radio button to enable ● Option will provide up to 10% more current for the acceleration period each time the motor is started from a complete stop |
 |
Error Display | ● Indication of out of range profile parameter input based upon current detected motor ● Display will indicate any errors detected for all 8 Profiles |
