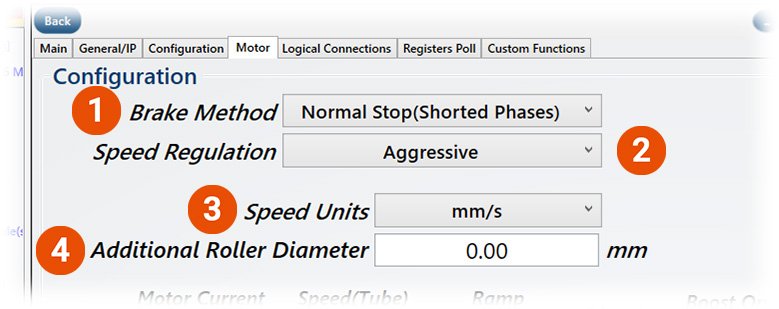

Configuration

Item	Function	Description
	Brake Method	● Dropdown box used to select one of three pre-defined Brake methods ● See Brake Methods for details
	Speed Regulation	● Drop down box to select one of three pre-defined PI Regulator modes ● See Speed Regulation for details
	Speed Units	● Drop down to select the units for Speed and Ramp ● Units are mm/sec and RPM

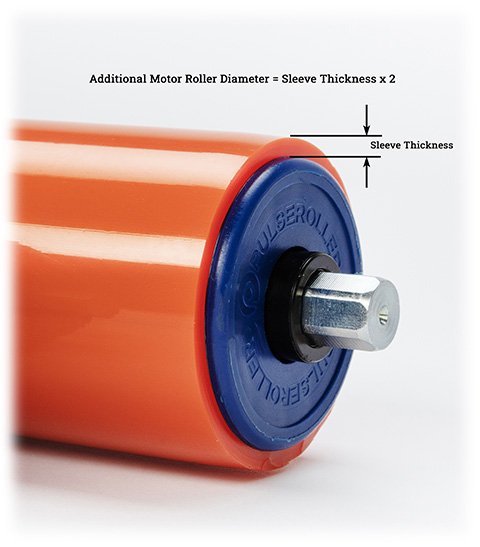

	Additional Motor Diameter	● Enter value in mm for the thickness of any sleeve or coating on the motor tube ● Actual Speed displayed will factor in this amount
