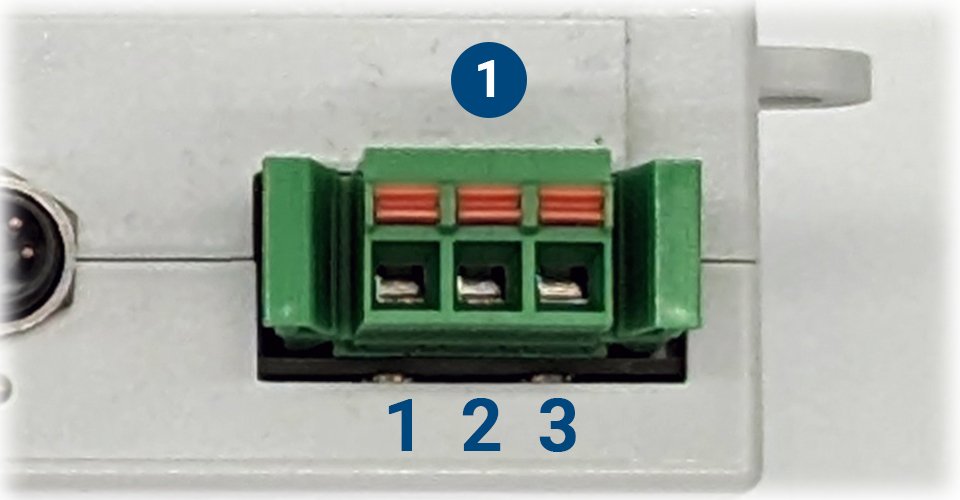

Power Connector
| Power Connector Plug | |
|---|---|
| Part Number | Wurth Electronics Part Number 691304530003 |
| Wire Size | 26 – 14 AWG (0.2 – 1.5 mm 2) |
| Strip Length | 11 – 12 mm |
| Pin | Signal | Description |
|---|---|---|
| 1 | Motor Power | Motor Only Power +24 or +48 VDC Supply |
| 2 | GND | 0V DC Common |
| 3 | Logic Power | Logic Only Power +24 or +48 VDC Supply |
