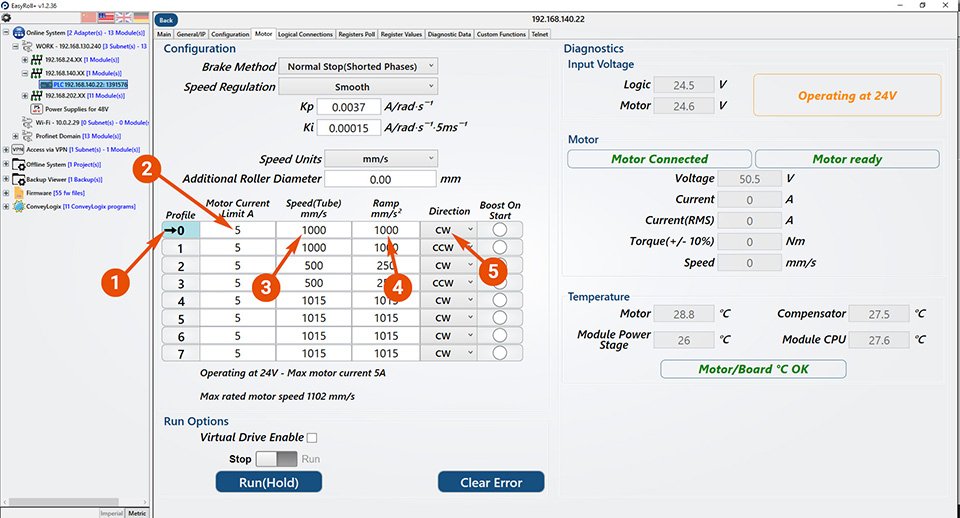

Configure Profile 0

Item	Description
	Select Profile 0
	Enter the Current Limit for the motor based upon the application. For our example, we have selected 5A.
	Then enter the speed value. For our example, Cycle 1 is assigned to Profile 0. Enter 1000 which equal to 1 m/s.
	Enter the Accel / Decel Ramp. For Cycle 1 this is 1000.
	Select the motor rotation direction. For Cycle 1, the conveyor direction is “FWD” and based upon how the motor is oriented in the conveyor, this is the Clockwise (CW) direction.
