Stand Alone Operation / Hardwired Control Example /

Configure Profiles 1 thru 3

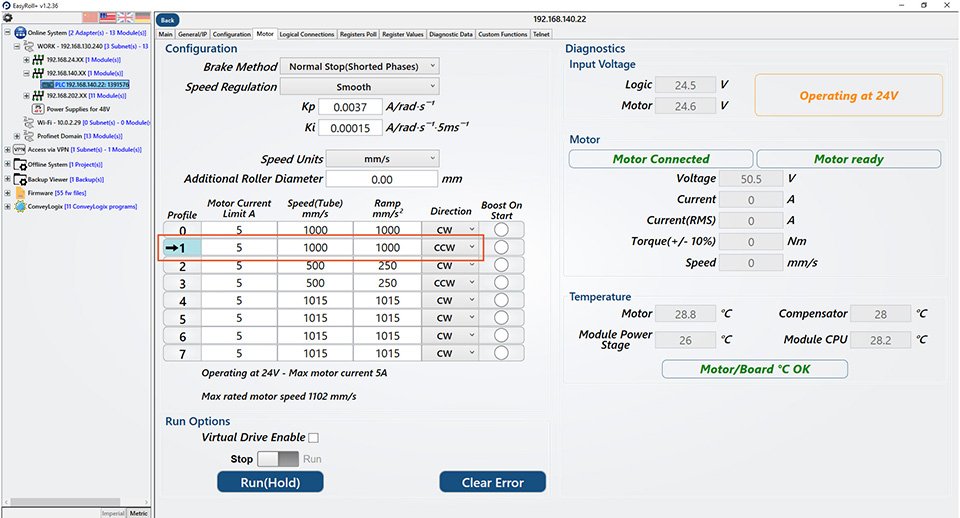

Profile 1

Cycle 2 is assigned to Profile 1 and this profile has the same Speed and Ramp values as Profile 0. The only difference is the rotation direction changes from FWD to REV which means the Counter Clockwise radio button for Direction is selected.

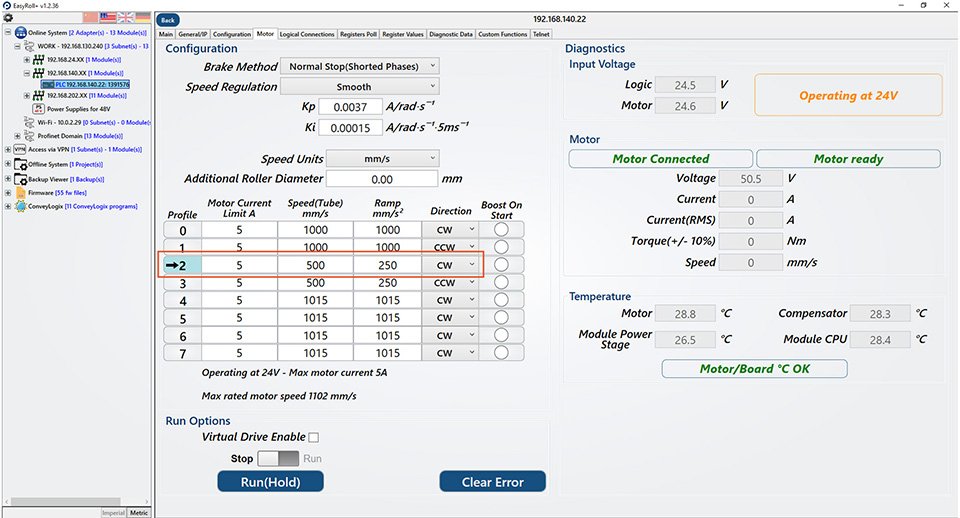

Profile 2

Cycle 3 is assigned to Profile 2 and this profile requires the following new settings:

Speed = 500 mm/s
Ramp = 250 mm/s²
Direction = FWD (Clockwise)

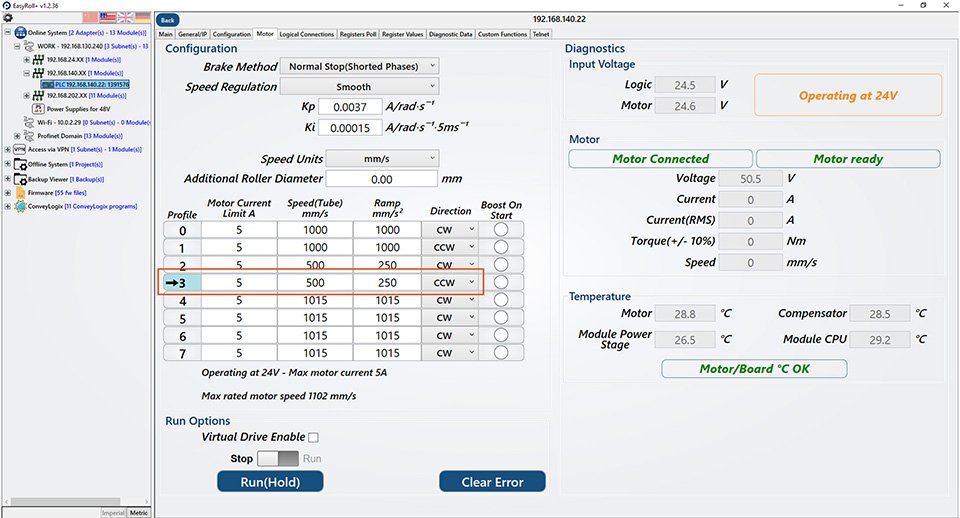

Profile 3

Cycle 4 is assigned to Profile 3 and this profile has the same Speed and Ramp values as Profile 2. The only difference is the rotation direction changes from FWD to REV which means the Counter Clockwise radio button for Direction is selected.
