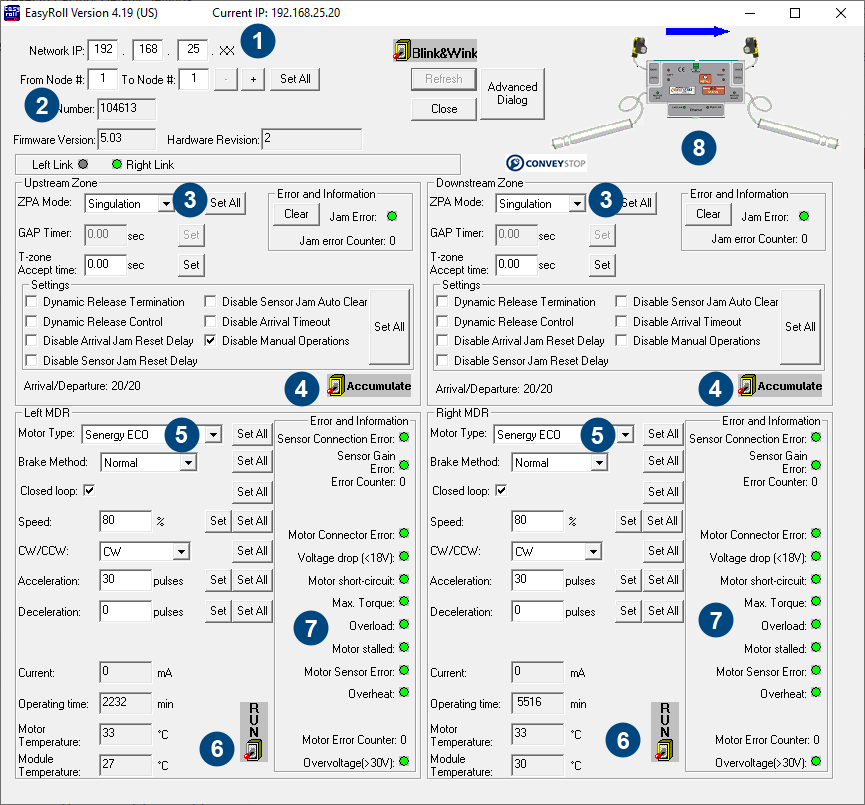

Indicator | Description |
---|---|
Network IP – This is where you enter the Subnet of the particular ConveyLinx network you wish to connect | |
Node No. – This is where you enter a range of Nodes in which to connect. Entering values here will cause the “Refresh” button to enable. Clicking this button will cause the rest of the items (3, 4, and 5) to be populated | |
Upstream Zone / Downstream Zone – These selections allow you to change the ZPA mode of the particular zone as well as several check boxes to change the default operation of certain jam conditions, etc. | |
Upstream Zone / Downstream Zone – Selector to cause the local zone to Accumulate if a carton arrives and to cause the local zone to be in Accumulate mode upon power up of the module | |
Left MDR / Right MDR – Selections for MDR type, speed control, acceleration, deceleration, etc. | |
Left MDR / Right MDR – Selector to click to jog the MDR, click again to stop | |
Left MDR / Right MDR – Visual indicators for various MDR status and diagnostics information | |
Diagnostic Window – Click the graphic image to open a details Diagnostics window |
