4.2. Mounting Dimensions

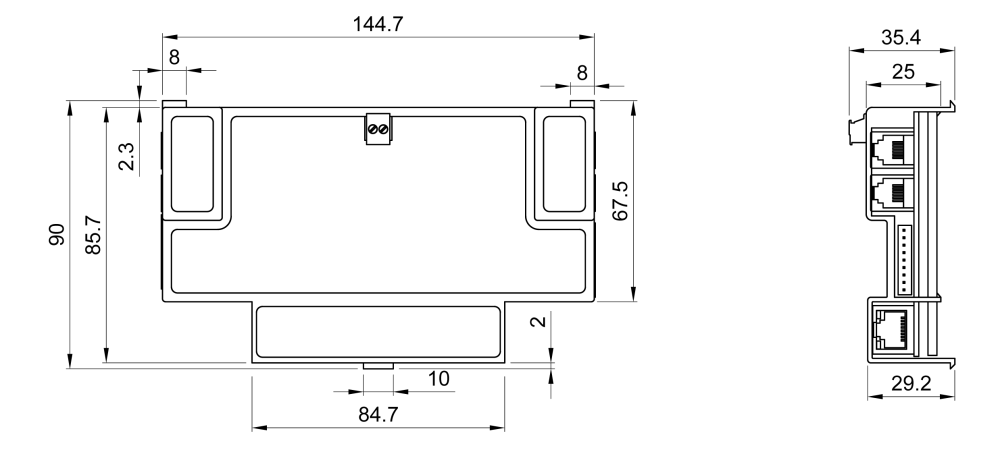

ConveyLinx (3010-0000) and ConveyLinxE (3110-0000)

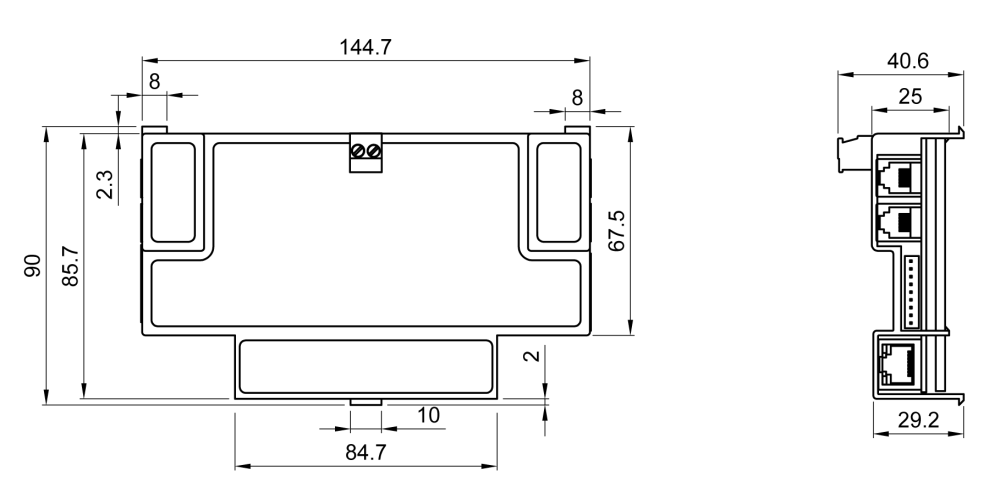

ConveyLinx-HTF (3010-3000) and ConveyLinxE-HTF (3110-3000)

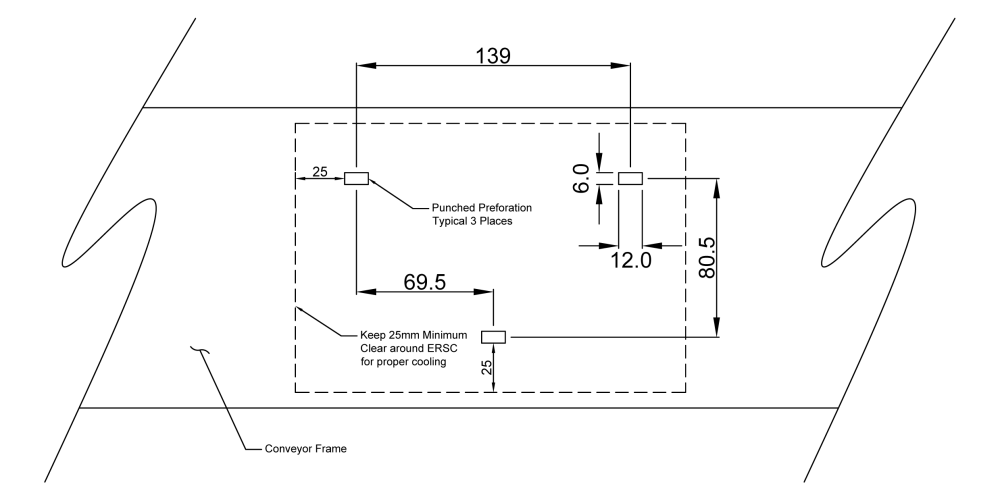

Conveyor Frame Preforations Dimensions

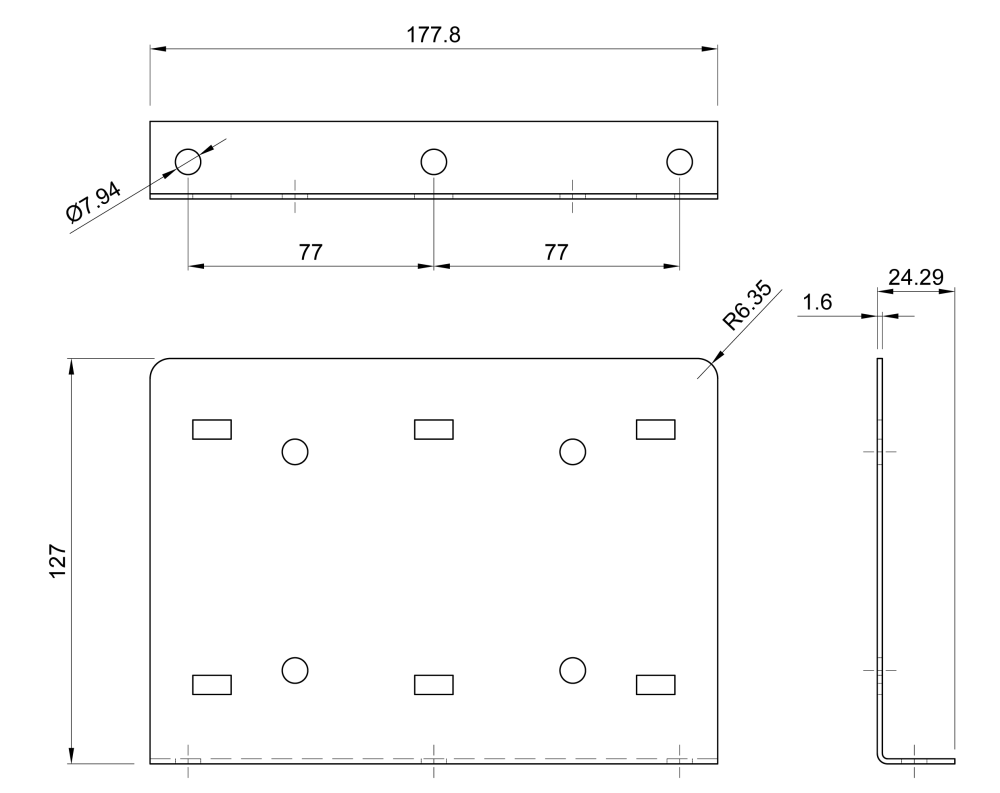

Optional Mounting Bracket

Pulseroller Order Type: BRKT-UNIV Order Code: 099-1002
