Floor-mounting is the standard method of installing the Style-5070 enclosure. Refer to the Style-5070 enclosure outline drawing (JE5309-00). Be sure to consider the following:

  1. Be conscious of planned ac input and dc output wiring to the ATevo selecting conduit entrances carefully.
  2. Location requirements:
    1. Free of drips and splatter. If falling particles and liquids are a problem, install a NEMA Type-2 drip shield accessory.
    2. Between 0 and 122 °F / -18 and 50 °C, with relative humidity between 0% and 95% non-condensing.
    3. Must be free of flammable or explosive materials.
  3. Maintain at least 6in /152mm of free air on all vented surfaces for cooling.
  4. Allow 36in /914mm front clearance for operation and maintenance.


  1. To floor-mount the ATevo, install four (4) 0.25in / 6.4mm anchor bolts into the floor.

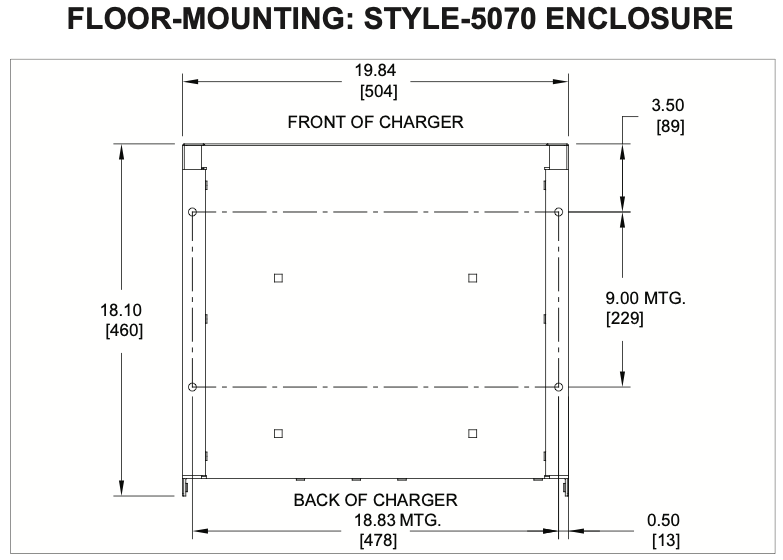

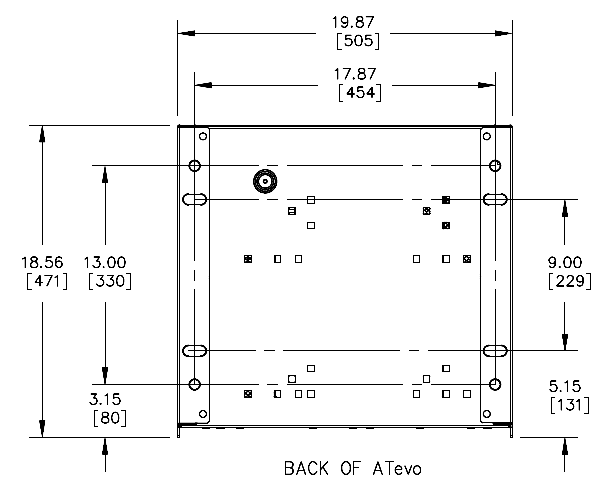

  2. Refer to the following graphic for the Style-5070 floor- mounting pattern and enclosure footprint. Dimensions are in/mm.
  3. Carefully lift the ATevo above the anchor bolts, guide the enclosure onto the floor bolt pattern and lower it into place.
  4. Add appropriate mounting hardware to the anchor bolts and tighten securely.
