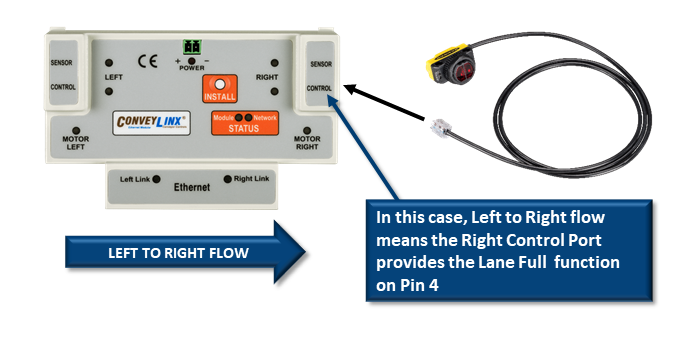

| Because standard RJ-11/12 Sensors put their blocked/clear output on Pin 4; this type of Sensor can be plugged into the Downstream Control Port and provide the Pin 4 Lane Full signal. |
![]() |

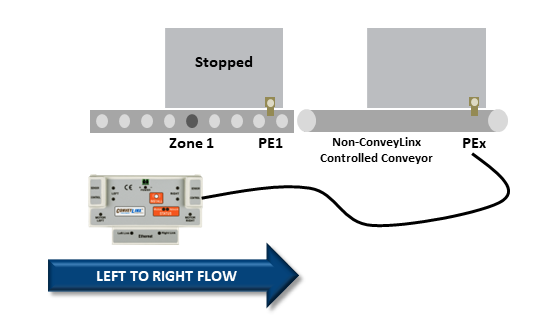

| When PEx is plugged into the Right Control Port and its output is ON, Zone 1 will see a Lane Full condition and stop any item that arrives at PE1. If PEx output is OFF, Zone 1 will continue to run and convey item downstream |
![]() |
*If you do not have a Sensor with RJ-11/12 connector; you can use an SE module to wire you sensor to the Control Port
*Block and Clear Timer function for the Lane Full Sensor
*By default, your Sensor has to energize its output when it is blocked to make Lane Full operate. You can change Pin 4 to accommodate a Sensor that de-energizes its output when it is blocked
!If your sensor has an Error or Health Output signal, you need to cut the signal wire for this on the RJ-12 connector in order to keep this signal from inadvertently energizing Pin 3
