When you have a single zone ConveyLinx-ERSC Module (one sensor and one or two motors); whichever side of the ConveyLinx-ERSC Module (Left or Right) that has the Sensor attached will always be the Upstream Zone of the ConveyLinx-ERSC Module and that same side’s Control Port Pin 4 will provide the Wake Up function.

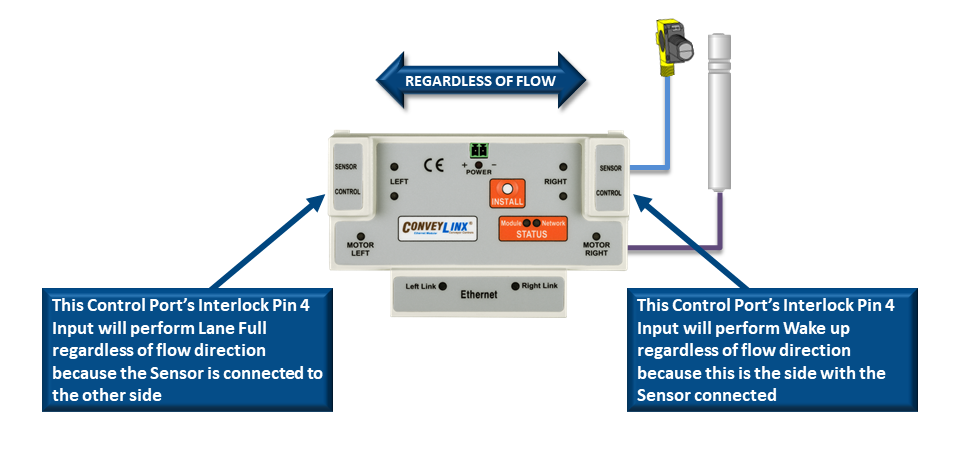

Single Zone ConveyLinx-ERSC Module with Sensor on RIGHT Side

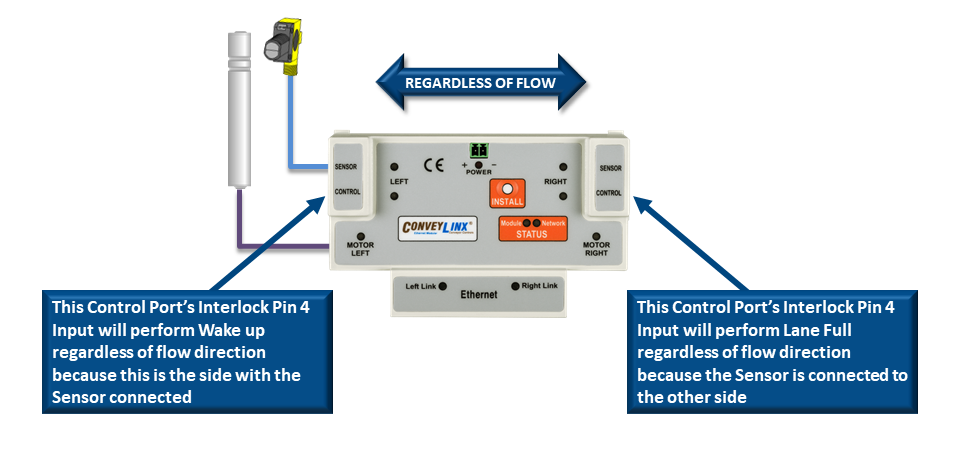

Single Zone ConveyLinx-ERSC Module with Sensor on LEFT Side
