Berlinger offers a range of external sensors compatible with the SmartMonitor. All sensor types are connected following the below steps.

Make sure that the sensor is properly connected to the device. Do not tighten the connector with pliers or any other tool, otherwise, the connector may be damaged.

If the SmartMonitor has been configured with a SmartSensor in SmartView, it will indicate the status accordingly on the device display upon SmartMonitor set up (SENSOR OK vs. SENSOR NOT OK) (For more information please see chapter WARNINGS).

How to place and connect the external sensor to SmartMonitor

Step	Picture	Description

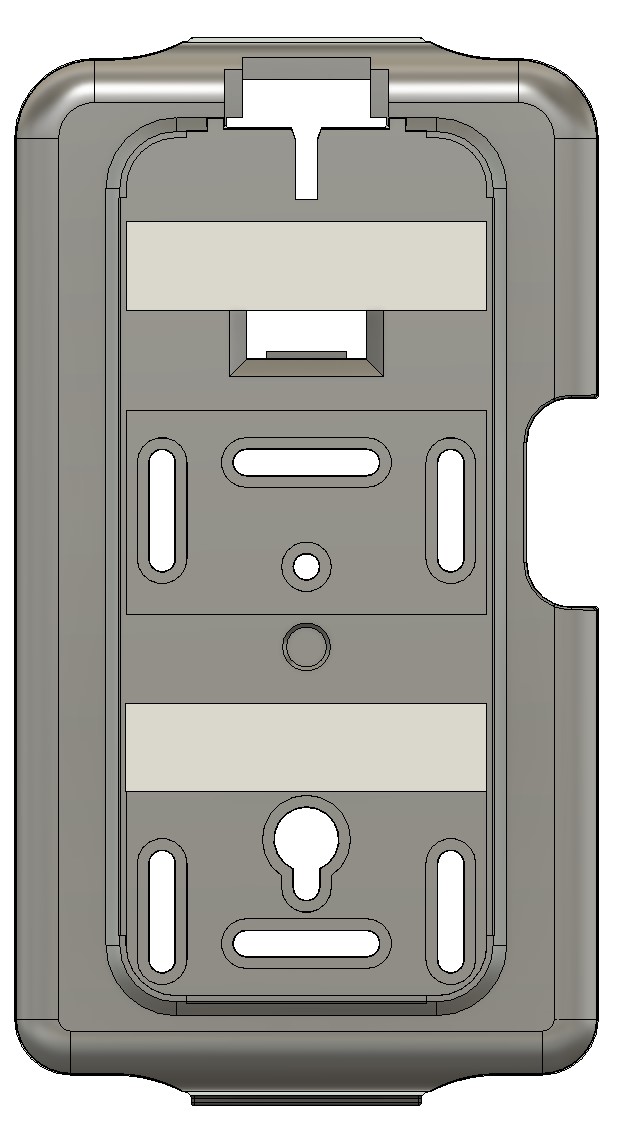

1		Prepare the SmartCradle.

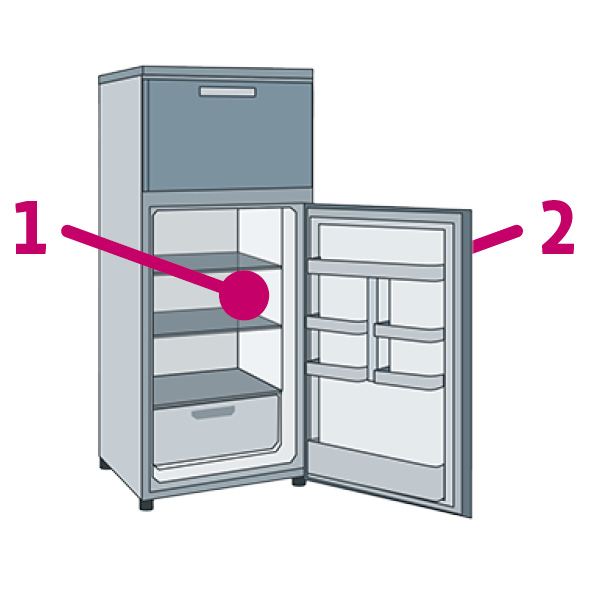

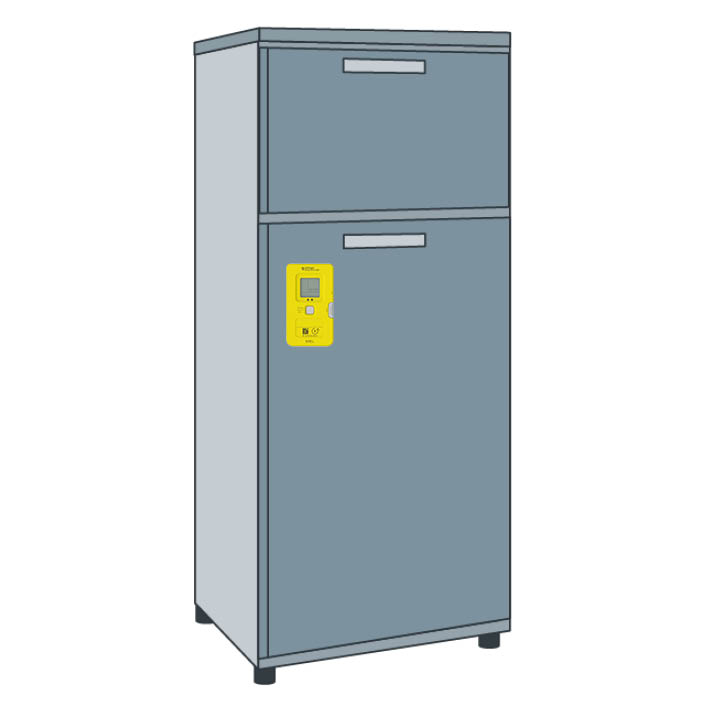

2		Place the SmartCradle outside the refrigerator/freezer. For alarming on keeping refrigerator door open too long, the SmartMonitor must be placed on the refrigerator door and the external sensor inside the refrigerator/freezer. ! The cable of the external sensor should be placed in such a way that it does not interfere with the daily handling of the personnel, or the cable can be disconnected.
3		Connect the USB cable of the SmartMonitor power adapter to the right of the SmartMonitor.
4		Plug the power adapter of the SmartMonitor into the power socket for permanent charging. ! Ensure that the cable does not represent a tripping hazard. ! Ensure that the cable cannot easily be disconnected as PERMANENT CHARGING is required for the SmartMonitor SITE L.
5		To connect an external sensor to the SmartMonitor, remove the grey cap at the right side of the SmartMonitor device.
6		Align the sensor plug with the sensor socket. Ensure the Berlinger eye ( ) is facing the same direction as the SmartMonitor device display. Now plug the external sensor into the sensor plug. Warning: Do not apply force as it can damage the connector on the device and/or external sensor.
7		Once correctly applied, tighten the connector by screwing clockwise.
8		Place the SmartMonitor in the SmartCradle. Continue with start your device.
