Intended use

The SmartMonitor is designed for the monitoring of temperature sensitive pharmaceutical goods in storage and/or transport. The device collects and automatically uploads data to the compatible cloud solution SmartView, for immediate decision-making on product integrity.

*The information is applicable for SmartMonitor SITE L, SHIP L and SHIP M. For detailed information, read the technical specifications.

Available device models:

SmartMonitor SHIP L

Modular real-time monitoring for shipments.

• Fully featured: in addition to temperature, providing condition data on humidity and operational handling (e.g., light, shock) for quality assurance and security purposes.
• Reusable: enabling reuse and refurbishment on established trade lanes, where device return, and reuse is feasible.
• The SmartMonitor is capable to supervise product and environment temperature simultaneously, enabled by the optional SmartSensor.

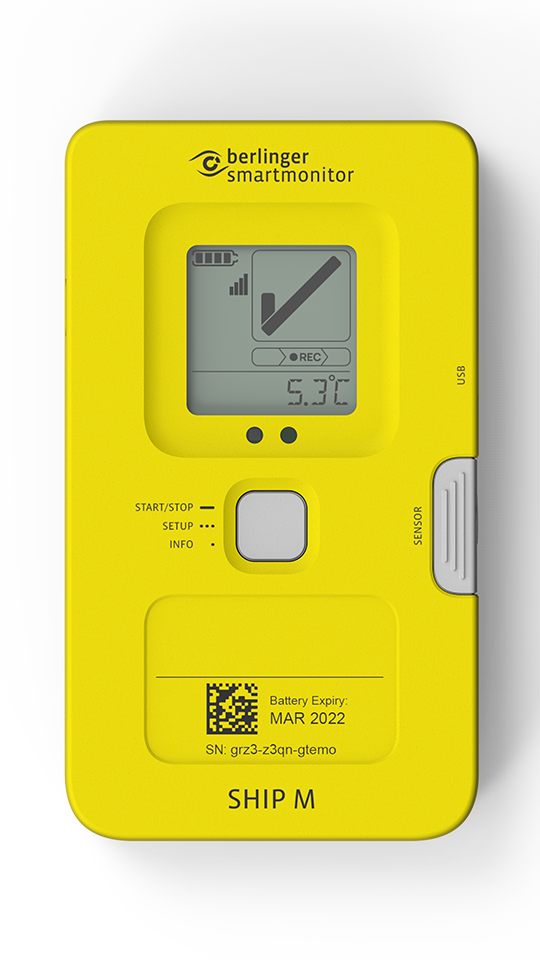

SmartMonitor SHIP M

Modular real-time device for shipments. Slim featured and single use.

• Slim featured: Real-time temperature & humidity monitoring.
• Single use: single use devices for challenging destinations, where device return and reuse is not feasible.
• The SmartMonitor is capable to supervise product and environment temperature simultaneously, enabled by the optional SmartSensor.

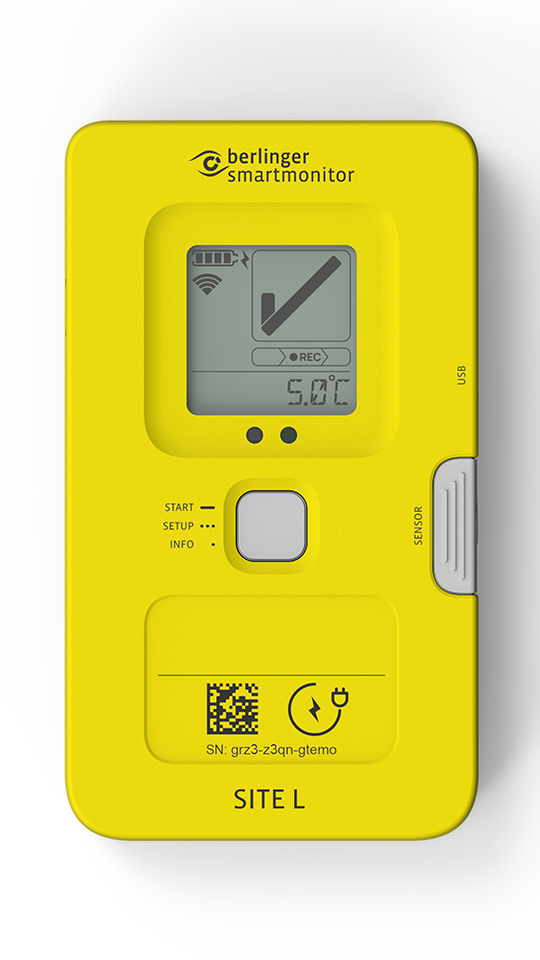

SmartMonitor SITE L

Modular real-time monitoring for the monitoring of refrigerator/freezers. Fully featured and reusable. Permanent charging required.

• Fully featured: in addition to temperature, providing condition data on humidity and operational handling (e.g., light, shock) for quality assurance and security purposes
• Additional data synchronization possibilities through WiFi.
• The SmartMonitor is capable to monitor product and environment temperature simultaneously, enabled by the optional SmartSensor.


Available sensor models:

SmartSensor
Berlinger offers a range of external sensors with the SmartMonitor, which can be easily and securely applied to the SmartMonitor via the sensor socket (M5), after removing the sensor cap.

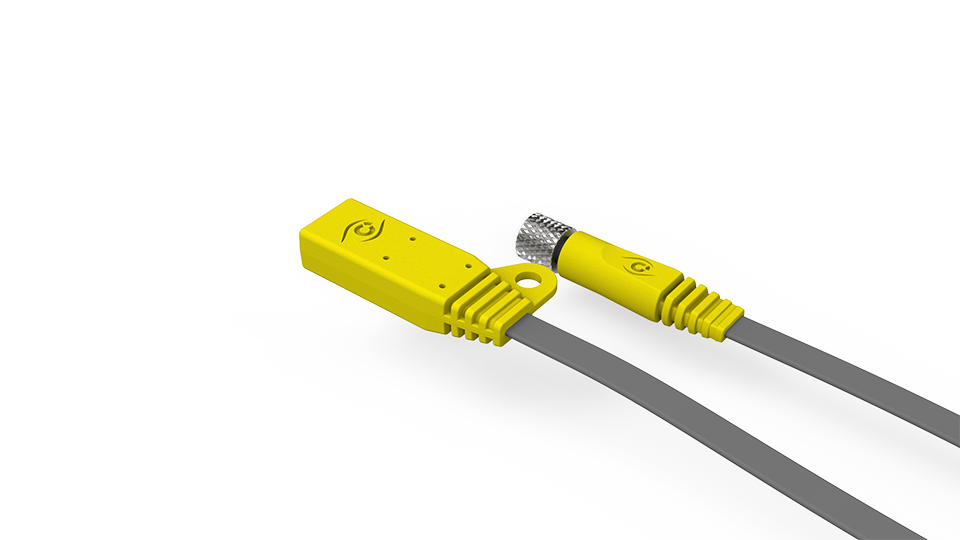

SmartSensor TEMP

The SmartSensor TEMP monitors products that are being transported or stored in refrigerators/freezers at temperatures from -40 to +75°C.

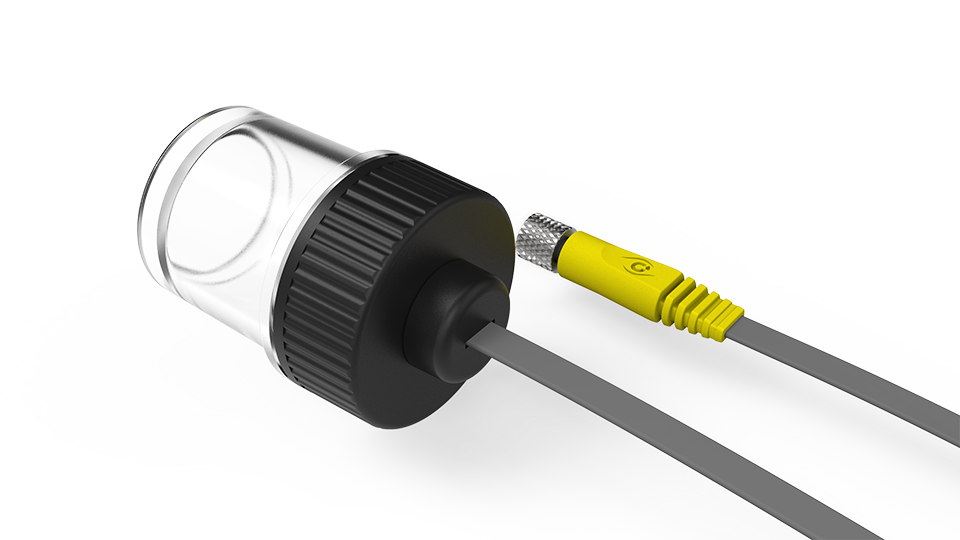

SmartSensor GLYCOL

SmartSensor Glycol for the monitoring of products in transport or storage in refrigerators/freezers at temperatures from -40 to +60°C. The glycol bottle simulates the temperature exposure behavior of vials. It is ideal to reduce sudden temperature fluctuations, like refrigerator door/packaging opening or defrosting cycles, while it accurately captures the temperature exposure of the vials monitored.

SmartSensor ULTRA LOW

The SmartSensor ULTR LOW monitors products that are being stored (e.g., in a freezer) or transported (e.g., with dry ice) at temperatures from -100°C to +75°C.

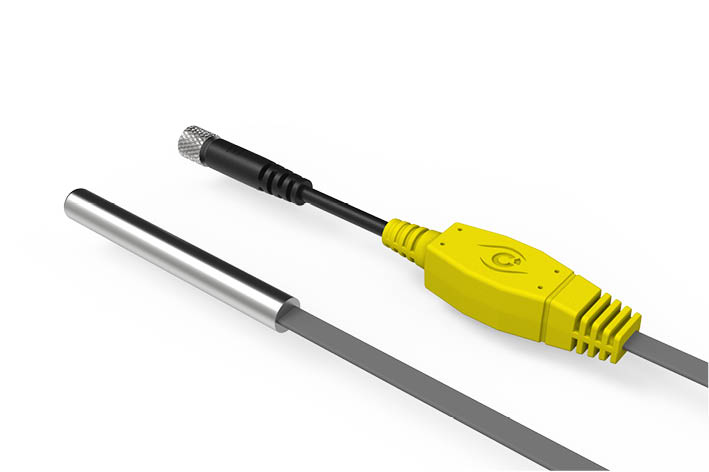

SmartSensor CRYO

The SmartSensor CRYO monitors products that are being stored or transported (e.g., cryo vessel, liquid nitrogen) at temperatures from -200°C to +75°C.
