Device info before monitoring start

To scroll through available device info, single-push the multifunctional button. Skip scroll text items with button short press.

Step	Screen	Description
1		The name of the configuration defined in SmartView is displayed.
2		The defined label name (e.g., Airway Bill, Refrigerator/Freezer ID, etc.) from SmartView is displayed on the screen.

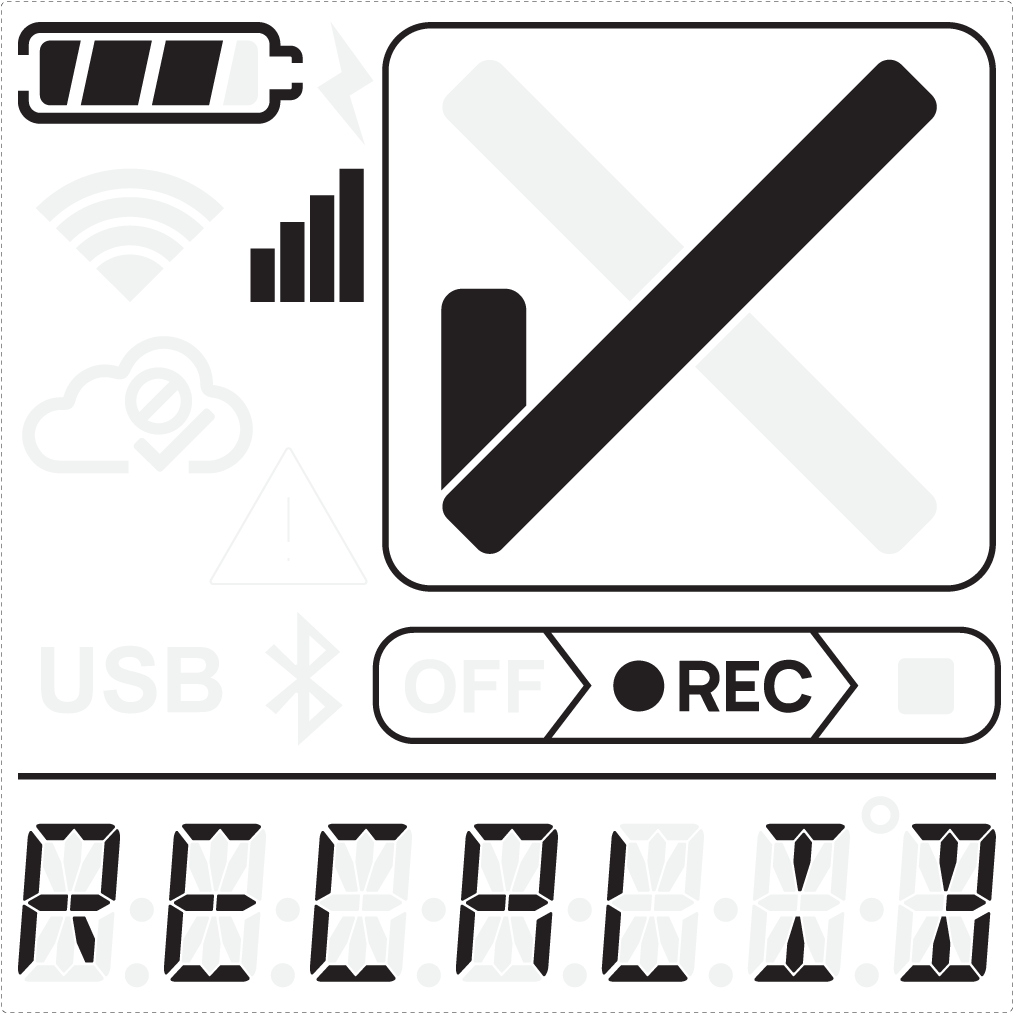

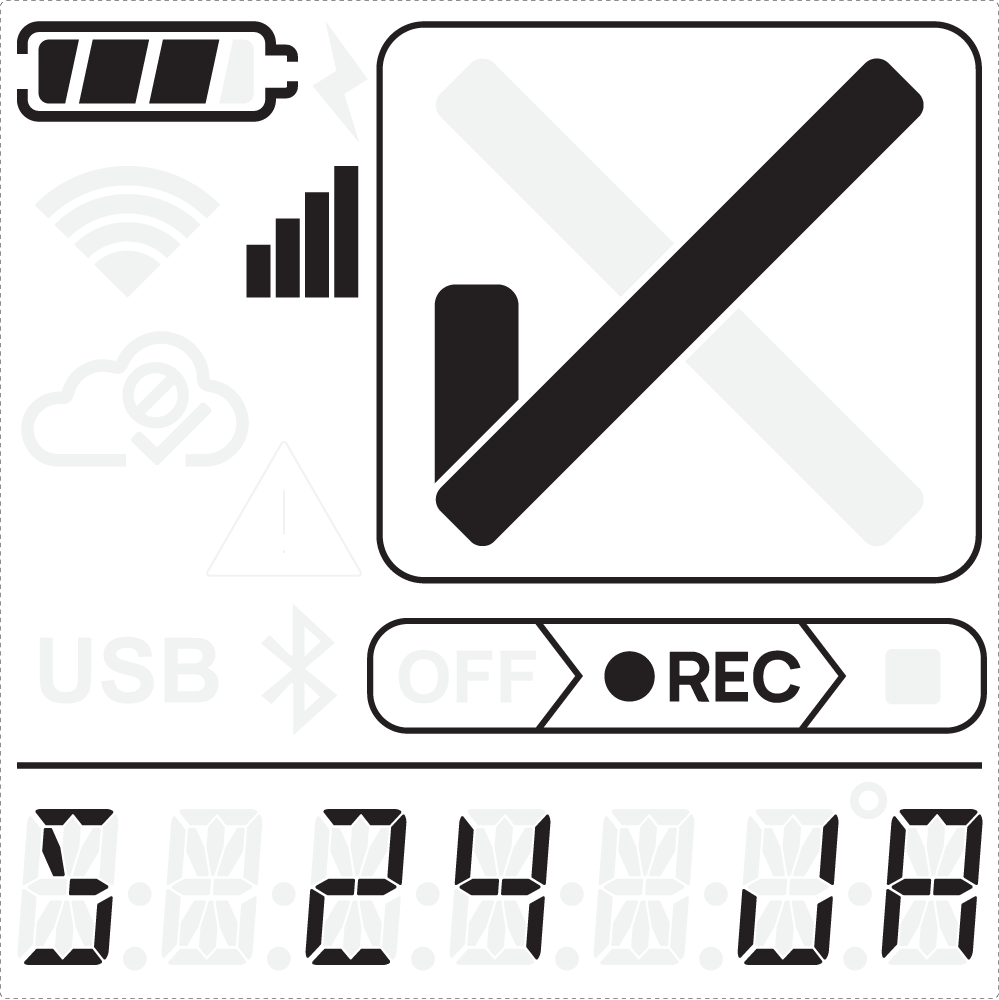

4		The date for the SmartMonitor to be recalibrated can get displayed on the screen. After the scroll-through of “RECALB”, perform a short-press of the multifunctional button to display the date in format DD MMM YYYY. Note: This does not apply to SmartSensors (to be found on the calibration label attached to the SmartSensors).
