Step Screen Description
1 Only when the data from the previous use has been successfully uploaded to SmartView and the restart procedure has been completed, the SmartMonitor SHIP L is ready for re-use.
2 Log into SmartView and locate the device that you would like to restart under the tab “Monitoring”, “Devices”. Type the serial number printed on the front of the SmartMonitor into the Device overview and open the device page.

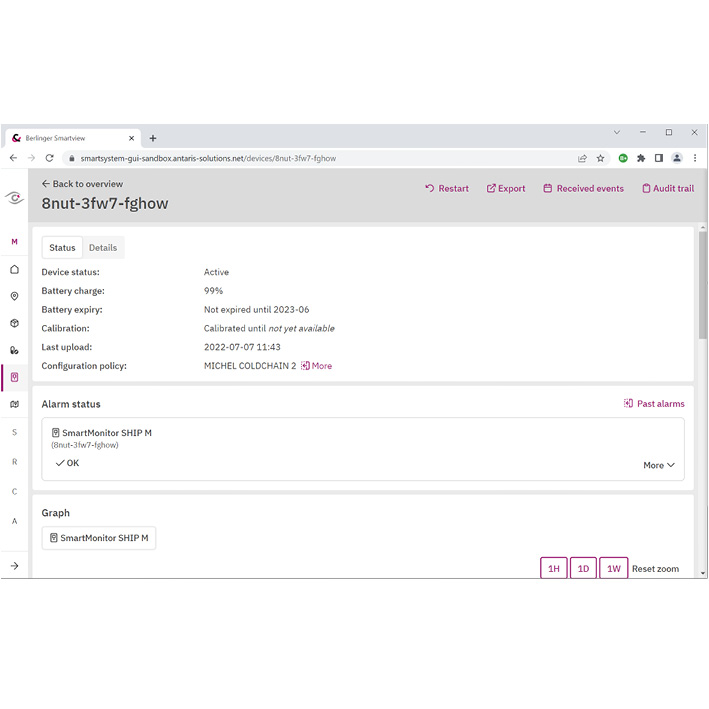

3 On the top right of the SmartMonitor device page select “Restart”.

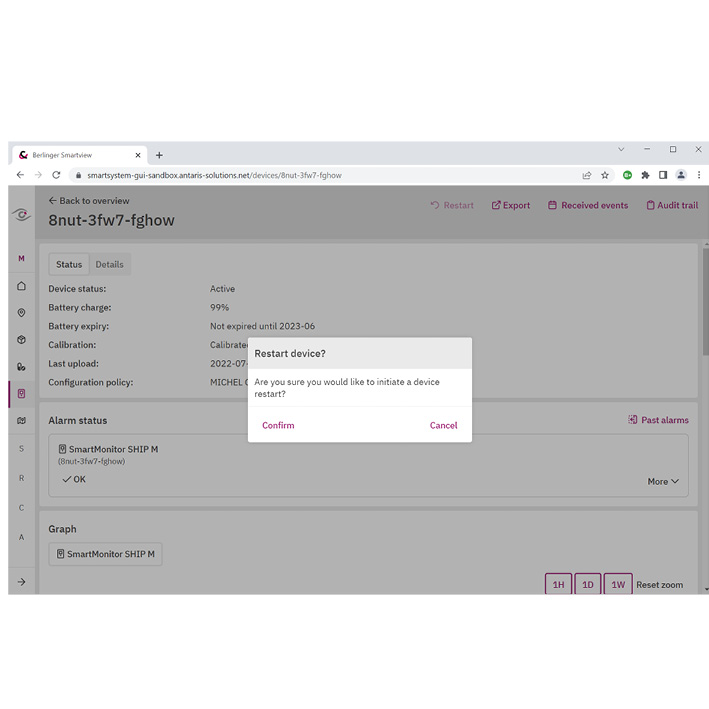

4 Confirm on the pop-up screen that you want to restart the selected SmartMonitor.

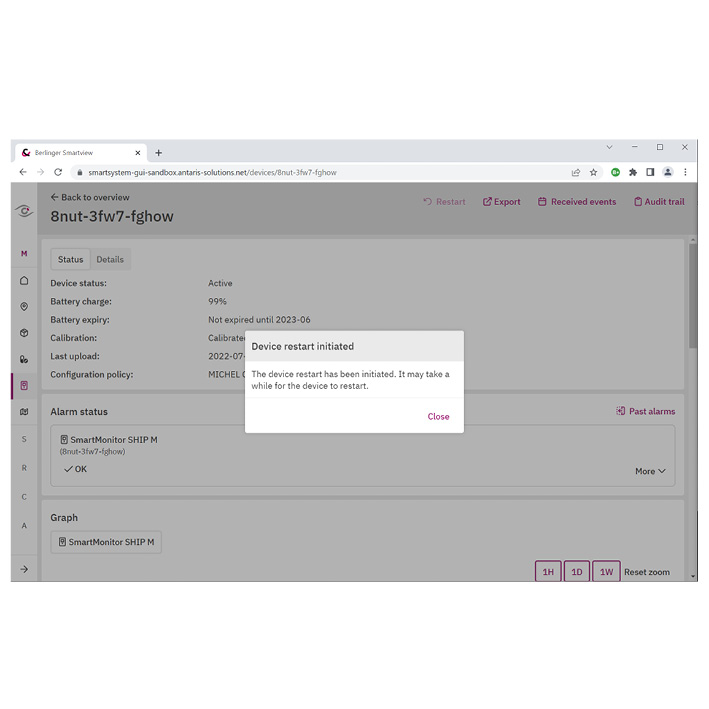

5 Confirmation that SmartMonitor device restart has been initiated
6 To initiate the restart of the SmartMonitor, triple-push the multifunctional button.
7 The display indicates “DELETE” during the process.
8 Once completed, the return message defined in the configuration is displayed.
