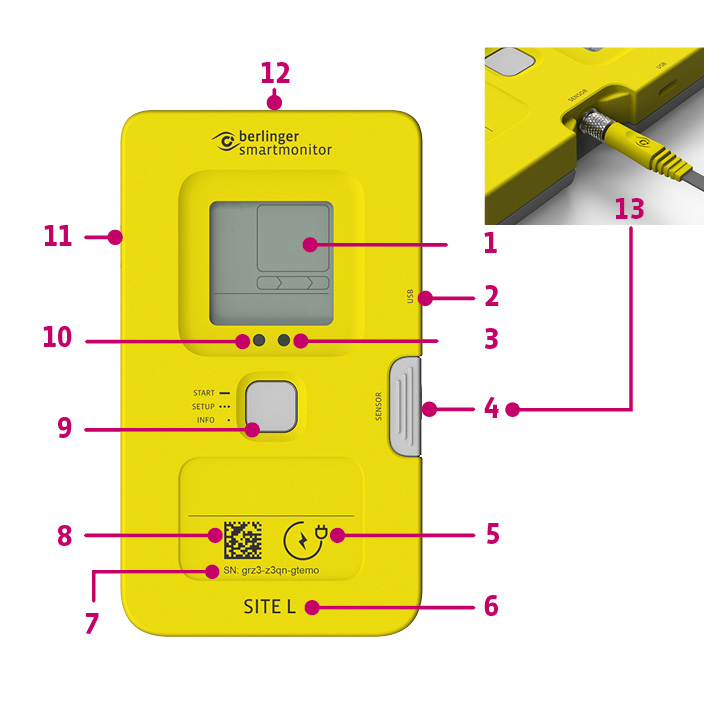

Device

No.	Name	Description
1	Display	Multi-information display
2	USB-plug	To charge the battery or download the data manually
3	LED	Light signal to support user interaction 1 x short white signal – Always upon button interaction 1 x long green signal – Indication SmartSensor or SmartHub has been successfully connected 1 x long red signal – User indication about status canceling or warning For SITE L only: Continuous blinking red signal – User indication about alarm/warning
4	Removeable cap	Remove for use of external sensor
5	Device use information	Indication for permanent charging (SITE L) Indication for re-useable device (SHIP L) Indication for battery expiry (SHIP M)
6	Device type	SmartMonitor model
7	Serial number	Uniquely identifiable number of the device
8	Barcode	Contains the serial number for read out with barcode scanner
9	Multifunctional button	3 x short press – Setup will cause the device to contact the cloud, trying to synchronize and download the configuration 1 x long press – Start monitoring 1 x short press – Display info scroll – Single button press causes to skip to next information 1 x short press – Mute acoustic alarm (SmartMonitor SITE L only)
10	Light sensor	Monitors light events
11	Humidity sensor	Monitors humidity
12	Centered hook	Mounting option
13	Sensor socket (M5)	M5 connector for external sensor

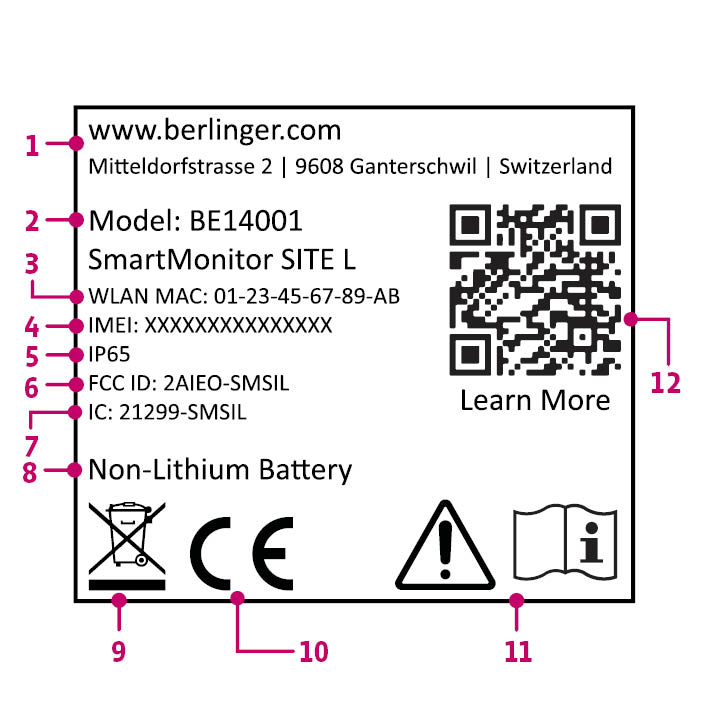

Backside label of the device:

No.	Name	Description
1	Contact	Berlinger contact details.
2	Model	Model under which SmartMonitor is registered with approval authorities.
3	WLAN MAC (only SITE L)	Unique identifier to connect the SmartMonitor to local WiFi.
4	IMEI (for SITE L, SHIP L and SHIP M)	Unique identifier to connect the SmartMonitor to local WiFi.
5	IP65	Protected from dust ingress. Protected from water spray from any direction.
6	FCC ID	Unique identifier assigned to the device registered with the United States Federal Communications Commission.
7	IC	Unique identifier assigned to the device registered with Industry Canada.
8	Battery	Non-Lithium Battery Indication. More information: BATTERY INFORMATION ¬ USE.
9	Waste electrical	Do not put in general waste. Contact Berlinger for recycling and refurbishment services. More information in chapter DISPOSAL.
10	CE (conformité européenne)	Means that the SmartMonitor meets the European health, safety and environmental protection standards.
11	General warning	See warnings in chapter WARNINGS.
12	“Learn more” QR code	More information about SmartMonitor by scanning the QR code.
