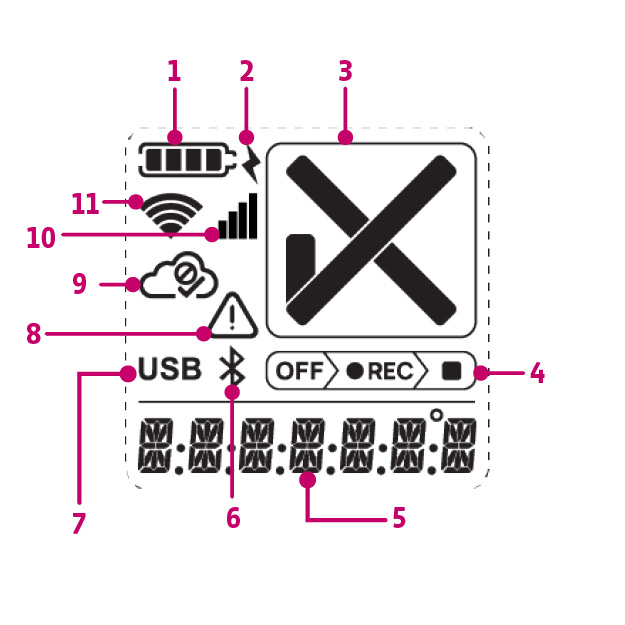

Display

No.	Name	Description
1	Battery status	Indicates the battery status
2	Battery charging	Lightning icon indicates whether external power has been connected
3	Alarm status	Device indicates that there is no temperature and/or humidity alarm violation on the device and/or on the external sensor Device indicates that there is one or more temperature and/or humidity alarm violation on the device and/or on the external sensor
4	Measurement status	SmartMonitor is ready to start – The device is not measuring yet SmartMonitor is measuring SmartMonitor has stopped
5	7-digit text field	Static or scrolling text to support user. On home screen, the text field displays the current temperature. On single button interaction, additional info is displayed
6	Bluetooth	Indicates that manual configuration upload or data readout via Bluetooth is required
7	USB	Indicates that manual configuration upload or data readout via USB is required
8	Warning symbol	Warning that device needs attention
9	Cloud status	Upload successful Upload not successful
10	Cellular connection	Connected to cellular
11	WiFi Connection	Connected to WiFi
