2.1.4. Configuration button (SMART)

This button allows to execute configuration actions. Press and hold the defined seconds to run the associated action. The following ones are predefined:

• Automatic autodialer configuration: hold pressed between 2 and 6 seconds with the device connected to only one elevator car. During the configuration the connectivity LED ( ) will remain lit and will blink when the process ends successfully. In case the configuration is not successful, the light indicator will turn off without blinking previously. This feature is only available for 72horas customers using GSR devices and autodialers available in the platform. GSR users who are not 72horas customers can use this 2 to 6 seconds button press for a custom action.

• Factory reset: hold pressed between 15 and 60 seconds. All LED lights will turn on and off after the device is reset to factory settings.

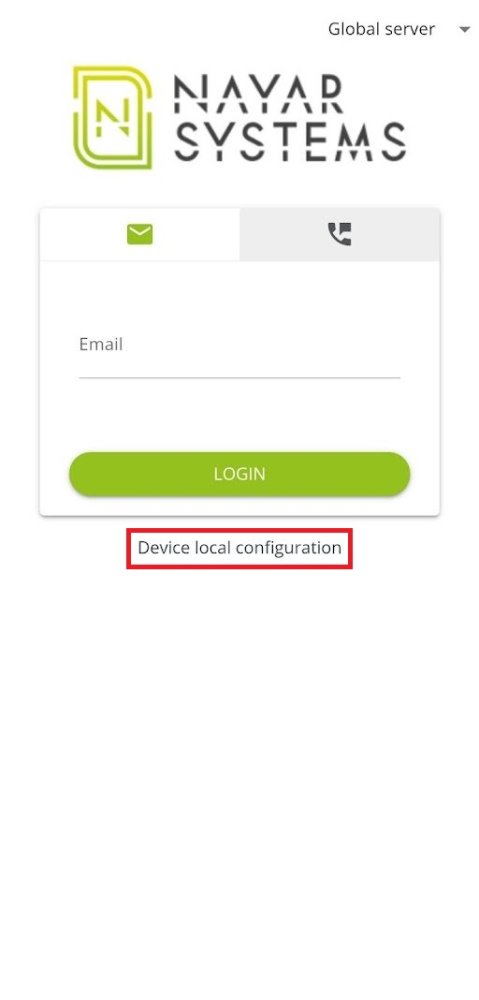

• Local configuration of the device / Offline mode: This mode allows you to make changes to the device’s configuration when it does not have access to the internet. To use it, it is necessary to download the Nayar Systems application. Download links: Android / iOS. Once the application is open, click on “Device local configuration” and follow the steps described in the assistant.
