The Retention Policy feature in Orchid Recorder allows Administrators to manage video archive retention system wide, or on a stream by stream basis, as well as review current and projected disk utilization.
About Video File Retention
To maintain a system for video file retention, Orchid Recorder determines how much disk space is available on the server. By default, Orchid Recorder will retain videos until your hard disk is 85% full (the Cleaner Threshold), at which point it will begin deleting the oldest videos to make room for new videos. The available video storage space is divided among all the cameras that have been added to Orchid Recorder based on equal days of retention; however, based on individual camera settings, this doesn’t mean that each camera will require the same amount of server storage space.
If no camera-specific retention settings have been entered, Orchid Recorder will grant each camera the same number of days of video retention. Since each camera may have different settings (such as recording style, frame rate, etc.), and those settings impact video file size, the amount of space required for the same number of days will vary.
In some applications, there may be cameras for which increased file retention is critical. For these cameras, the Administrator may set specific, minimum retention settings. In these cases, the retention settings for the remaining cameras will be adjusted automatically to share the remaining balance of available storage before the Cleaner Threshold is met.
Beginning in version 24.6, Orchid Recorder supports lower retention values and offers the option to set a desired retention setting, system-wide. Lower retention values may be important if your organization has a policy that defines a cap, or a maximum, for stored video. In this case, you could set a Custom (retention) Amount (that is lower than the default) for all cameras at once. If you do this, the system will actively delete archives that exceed that retention level (after giving you a warning, of course). On the other hand, if you want to override a few existing custom limits with a global Automatic setting, you may do this by setting the desired retention to Automatic.
When disk usage reaches the retention limit, Orchid Recorder will create free space by removing the oldest archives first. The system will ensure, however, that the minimum desired retention settings that have been set are maintained, assuming sufficient disk space is available.
To change the 85% Cleaner Threshold setting, use the Advanced Settings feature.
For additional tips on the Retention Policy, please refer to the Orchid Recorder Administrator Guide.
Accessing the Retention Policy

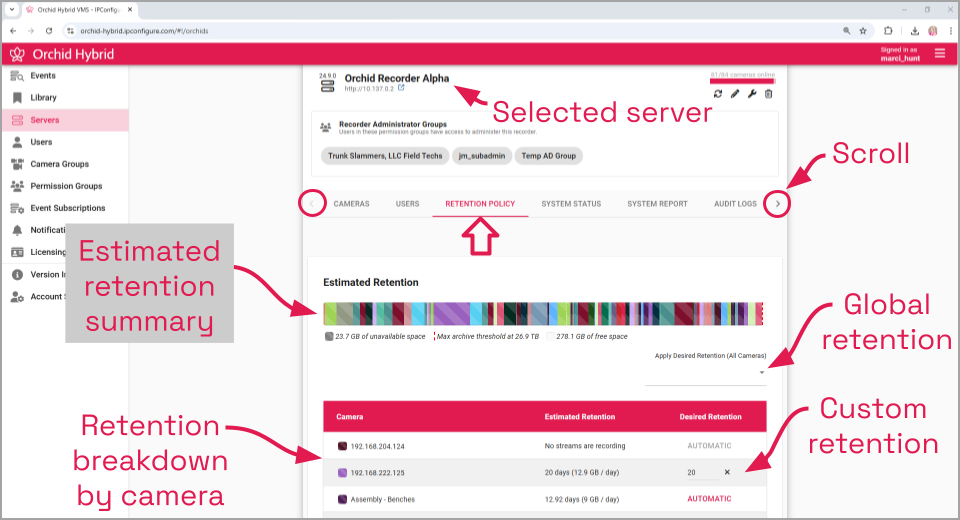

- From the Servers page, select a server and click on the Retention Policy tab.
At the top of the Retention Policy tab, Orchid Recorder displays a summary of estimated server space usage. Use the cursor to hover over the colored regions of the summary graphic to view the estimated server space usage for each camera.
- Unavailable space: This space on the disk is marked in grey. It is already in use by other applications and is unavailable to Orchid Recorder for storing video.
- Video data: This space on the disk is marked in various bright colors representing each camera. This space is filled with videos that are managed by Orchid Recorder. To make space for new video, the oldest videos are continuously and automatically deleted as the Cleaner Threshold is reached.
- Cleaner Threshold: By default, Orchid Recorder will attempt to make sure that no more than 85% of your disk space is used. This threshold is marked on the bar by a red dotted line. To change the 85% Cleaner Threshold setting, use the Advanced Settings feature.
- Free space: This disk space is not in use by Orchid Recorder or any other program.
Changing Desired Retention Settings

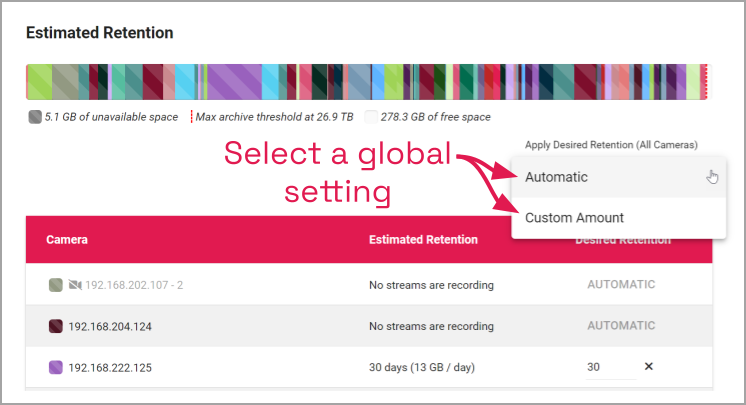

- To apply a desired retention setting to all cameras at once, use the Apply Desired Retention drop-down list.
- Click on the list and select either Automatic or Custom Amount.
- If you click Automatic, all of the desired retention settings will be set to automatic (so the system will retain the same number of days of video for all of the cameras, based on available storage).
- If you click Custom Amount, you will then need to enter the number of days in the field provided. The system will set each camera to the desired retention (provided that you have enough available storage).

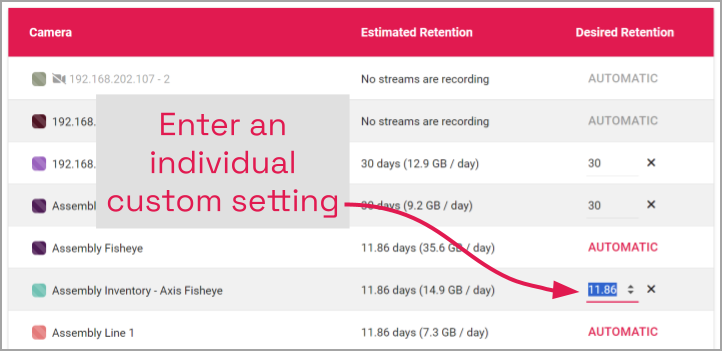

- To edit the desired retention setting for a specific camera, click on the corresponding Automatic button.
- Type in a new setting to represent the number of days of video that will be kept for this camera. The remaining estimated retention will automatically be recalculated for all cameras that do not have a manually specified retention setting.

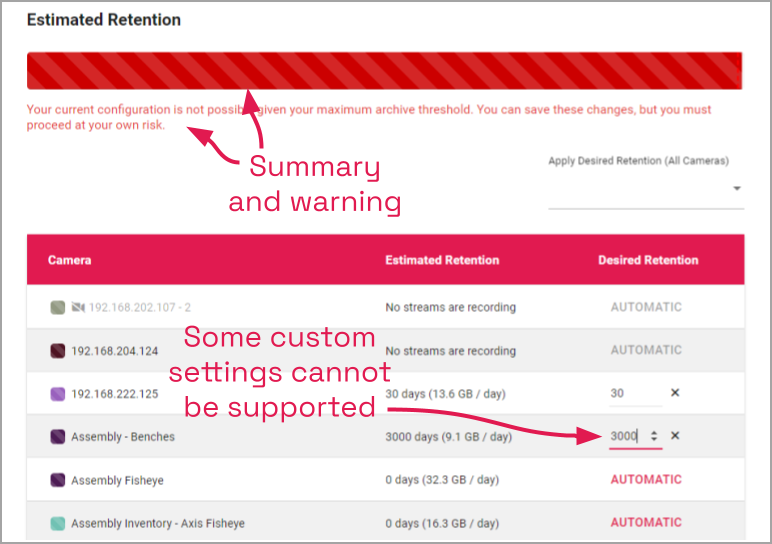

If your new setting requires more storage than is physically available on your disk, Orchid Recorder will flag an error (as pictured below). To fix this, you’ll need to reduce the desired retention to an acceptable level or add more available storage.

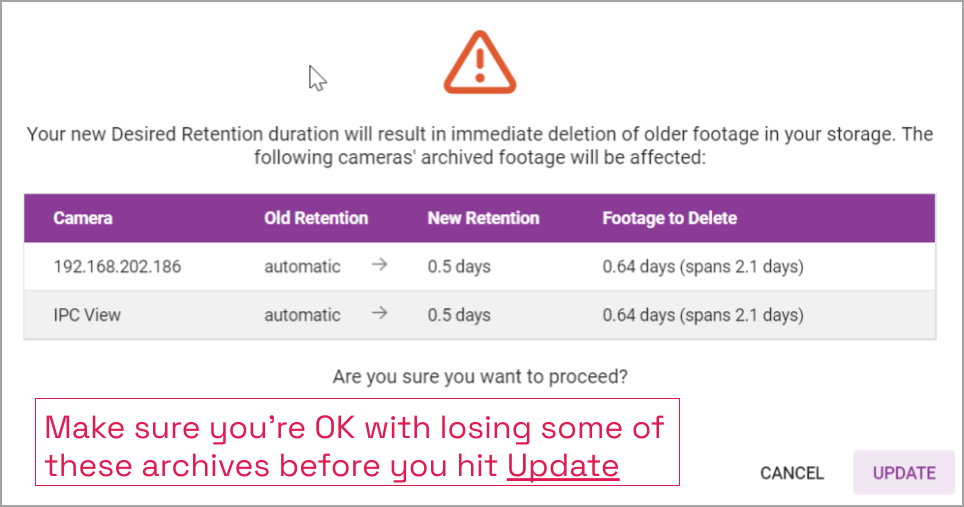

If your new setting is lower than the automatic setting, you will likely receive a warning that the system will have to delete some archived video to stay within the limit.
- Repeat steps 3 and 4 for each camera that requires a custom retention setting.
- To undo the last setting you changed, press the Cancel Changes button at the bottom of the list. (You can only use this feature prior to saving the new configuration.)
- Once all settings have been entered, press the Save Configuration button at the bottom of the list.
- To quickly change any setting back to Automatic, click the X button next to the setting and then press the Save Configuration button.
Reviewing the Current Disk Utilization

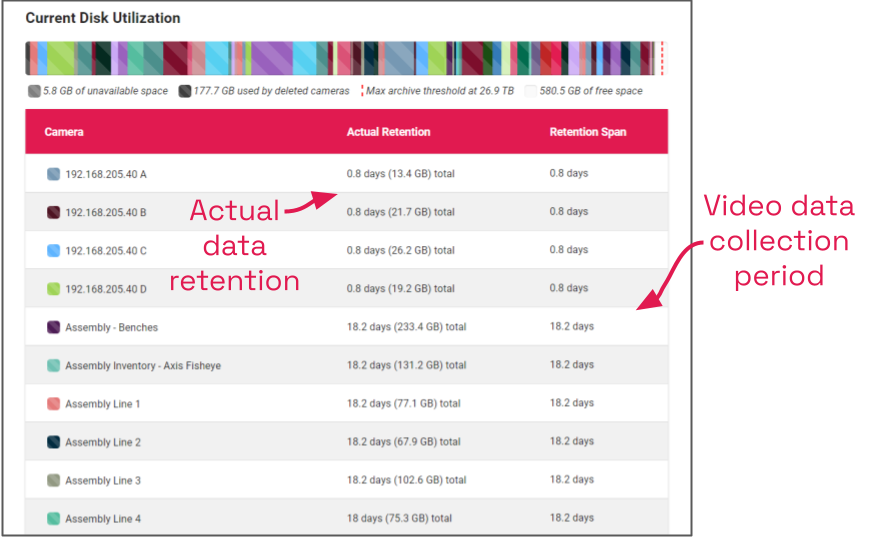

The bottom half of the Retention Policy tab displays how the server space is actually being used. Use the cursor to hover over the colored regions of the summary graphic to view the actual server space usage for each camera.
The Current Disk Utilization section displays a summary of actual server space usage which includes unavailable space (space used by the operating system and other files), space occupied by video files, and a buffer of free space. It then provides a usage breakdown by camera. This information can be very helpful in diagnosing retention issues.
The Actual Retention column shows how many days worth of video is being stored per camera. It also includes how much disk space each camera is consuming. The Retention Span column shows the number of days over which the video files have been recorded. This data point is especially helpful for those cameras that are set to record only when motion is detected. For example, let’s say that one of the cameras has an actual retention reading that is 0.5 days (compared to the others which have 3.6 or more). The Retention Span should confirm that the system has been monitoring the camera for about the same amount of time as the other cameras.
You may also use this breakdown to determine if any of the cameras are using excessive disk space. If this is the case, you can then take steps to re-configure the camera (by changing either the desired retention settings or the camera stream settings) and fix the problem.
