1º Power supply

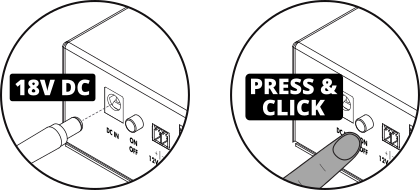

The 18V DC power supply unit provided in the package is to be connected to the GSR, and the power button must be actuated, in accordance with the depiction in the subsequent images.
Once the power button is pressed, wait for the device to connect to the mobile network and acquire coverage. This may take up to a maximum of 5 minutes.
2º APN Configuration (Optional Step)”
3º GSR update
Wait for approximately 15 minutes for the GSR to connect to the NAYAR server and download the necessary updates and configuration for its correct operation.
During the download and update process, the GSR will restart several times.

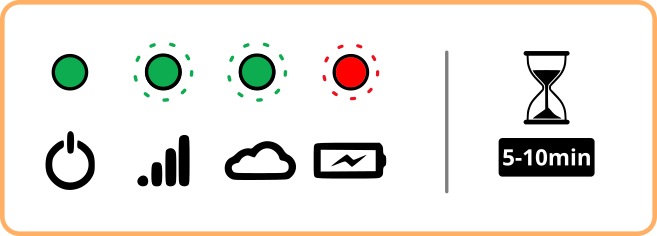

During these processes, the signal bar, cloud, and battery LEDs will blink, which means an internal process is running. It’s important to not act on the GSR until this process is finished and the device is OK.

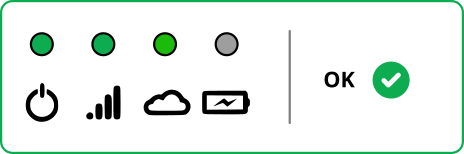

GSR is Online and Operational
Upon completion of the update process, all three LEDs on the GSR unit will remain continuously illuminated.
4º Connection of the Elevator Controller
Verify that all necessary wiring, connectors, and components for the control panel connection are present, according to the installation guide included with the installation kit.
Install the necessary connections for the control panel. Technician View
5º Connecting the Telephone Line

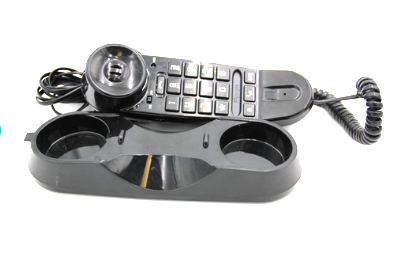

The telephone line output is to be connected to the autodialer unit. Subsequently, an analog telephone can be connected to verify the functionality of both incoming and outgoing calls.
 |
 |
6º Connecting the Audio Module. Using the GSR as an autodialer (optional)

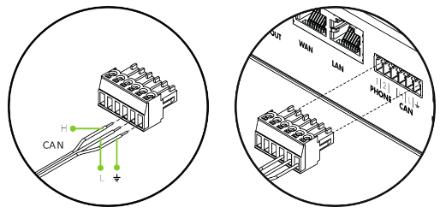

If necessary, wire the terminal block with the CAN communication wires from the Audio Module.
