SourceType
Beat
A complete waveform cycle is completed every beat.
Slow
A complete waveform cycle is completed in 10 seconds.
Medium
A complete wavform cycle is completed in 2.5 seconds.
Fast
A complete wavform cycle is completed in 0.5 seconds.
Static
A fixed value.
Bass
Value has a positive correlation with incoming Bass frequency level. (Does not work with generator)
Mid
Value has a positive correlation with incoming Mid frequency level. (Does not work with generator)
High
Value has a positive correlation with incoming High frequency level. (Does not work with generator)
Averagevolume
Value has a positive correlation with the average level of incoming audio. (Does not work with generator)
Instantvolume
Value has a positive correlation with the level of incoming audio. (Does not work with generator)
Eigthbeat
A complete waveform cycle over 8 beats.
Quarterbeat
A complete waveform cycle over 4 beats.
Halfbeat
A complete waveform cycle over 2 beats.
Doublebeat
A complete waveform cycle over a half beat.
Quadbeat
A complete waveform cycle over a quarter beat.
Wave Pattern

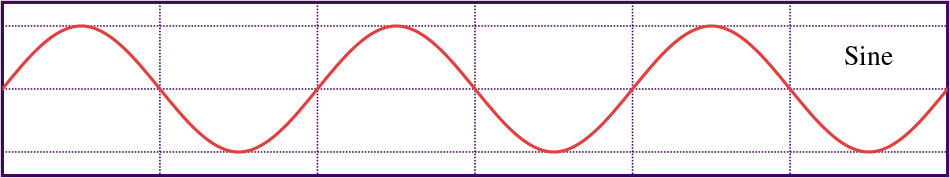

Sinewave

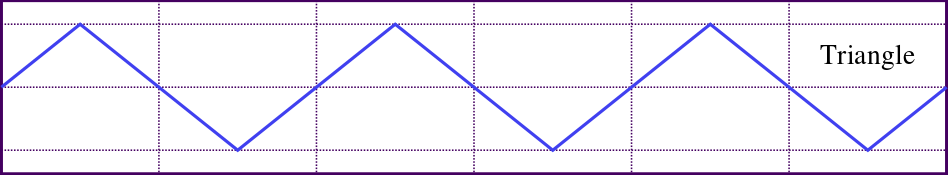

Trianglewave

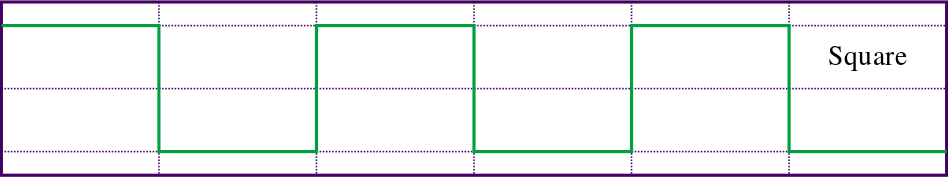

Squarewave

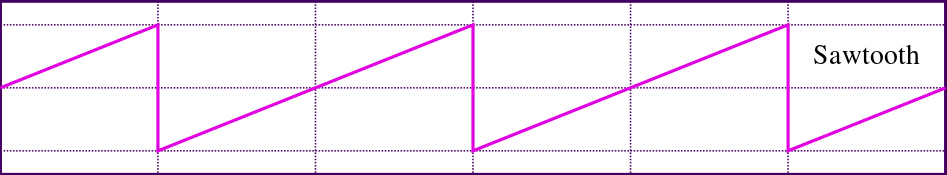

Sawtooth
Random
This wave pattern functions differently from the rest of the wave forms and that differs between SourceType:
- Beat
- Minimum value on the beat and a random value on the half beat.
- Slow
- Starts at minimum value, after 5 seconds selects a random value and then at 10 seconds returns to minimum value. The process cycles.
- Medium
- Starts at minimum value, after 1.25 seconds selects a random value and then at 2.5 seconds returns to minimum value. The process cycles.
- Fast
- Starts at minimum value, after 0.25 seconds selects a random value and then at 0.5 seconds returns to minimum value. The process cycles.
Invert
This toggle inverts the waveforms. Regarding the Random Wave Pattern it changes its function to a random value first, then value 0.
Value Range
These two rotary controls allow control of the minimum and maximum range of values accesible by BeatBridge on a pin.
