Location (via 2 walls)

Location (via 2 walls) helps you relocate using 2 walls and a height point (optional) as a reference.

!This function is not as accurate as Repositioning 3D Locations So if you need precision, go check this topic.

How to use location (via 2 walls)

• Leve Flexijet using the Auto-Levelling or Manual-levelling

• Activate the Location (via 2 walls) from the flexijet ribbon.

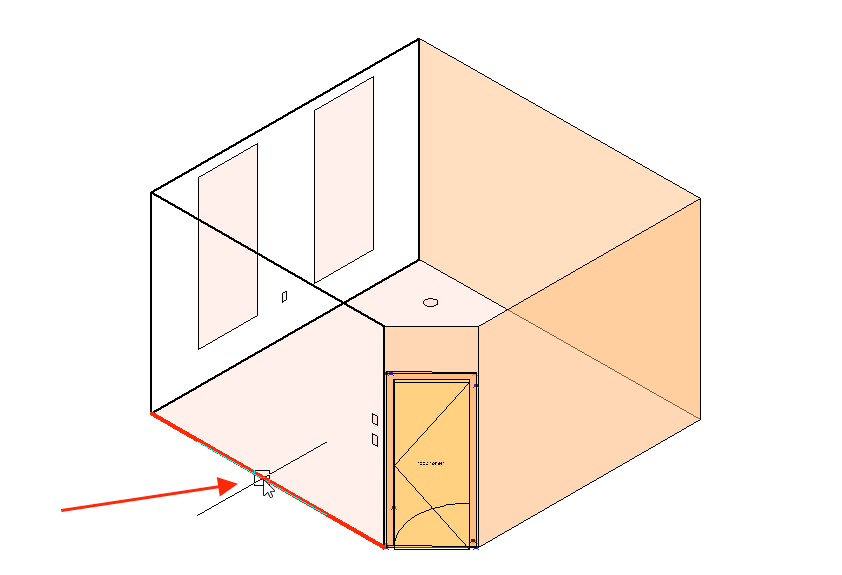

• Click on the first wall. This one is going to be colored red.

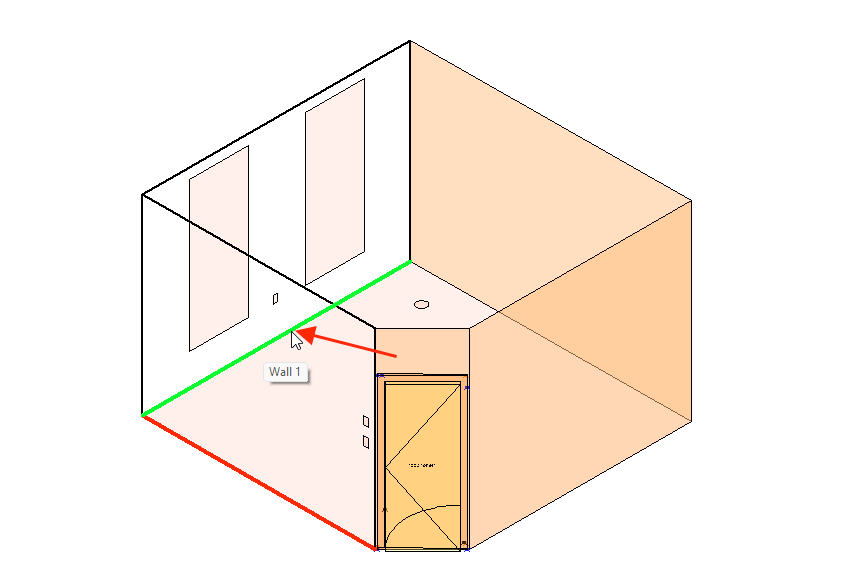

• Click on the second wall. This one will be colored green.

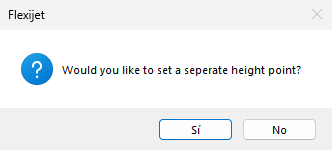

• A message window will pop up asking if you want to set a separate height point.


• Now, the command window will ask you to measure on the left side of the red wall.

• Measure the right side of the same red wall.

• Then measure on point on the green wall.

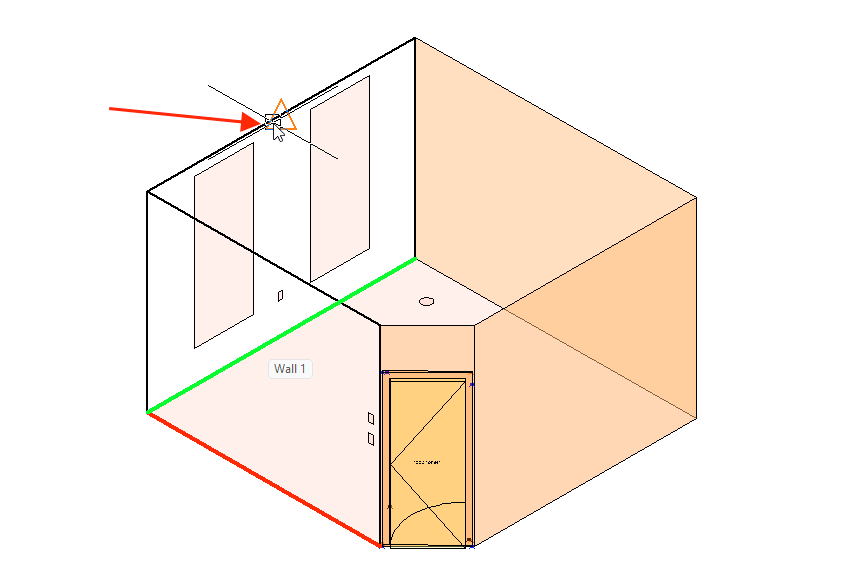

• And finally, a point for height.

• The Command window will display location 2d was set.

*Do not forget to use the show CAD point function to double-check your measurements after you use location (via 2 walls).
