This section details configuration of the EPIC Series Battery Cabinet system parameters, including date, time, and temperature (Fahrenheit or Celsius).
How to Configure System Settings

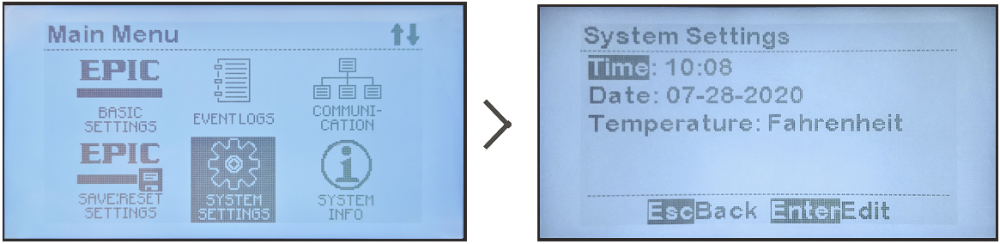

To enter System Settings mode, select MENU > SYSTEM SETTINGS. The EPIC Controller will display a page of parameters.
To change a parameter, do the following:
- Navigate to it using UP and DOWN; select it with EDIT/ENTER.
- Press LEFT and RIGHT to navigate to the digit to be modified (if applicable).
- Press UP and DOWN to change setting value.
- Once desired setting is displayed, press EDIT/ENTER to store it.
Clicking on each parameter below will reveal a screenshot of how the parameter is changed:

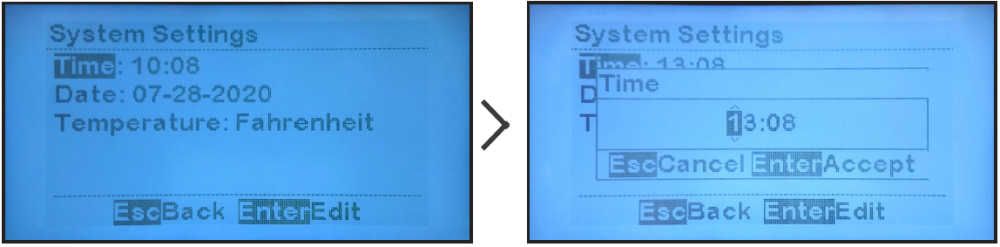

- Setting System Time
-
![]()
![]()

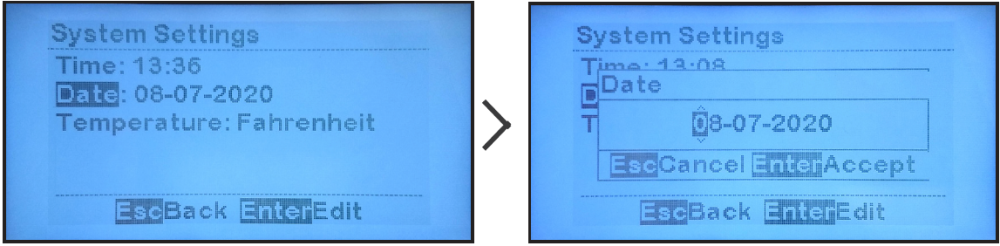

- Setting System Date
![]()
![]()

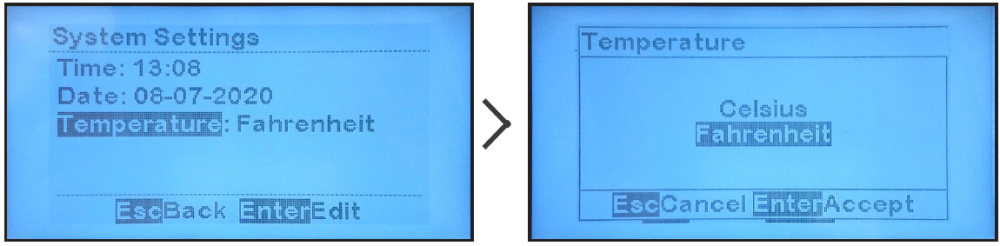

- Setting System Temperature Scale
![]()
![]()
