Prior to powering up the EPIC Series Console 2.0 for the first time, it is recommended that:

  • You have followed installation instructions carefully.
  • You check that AC input supply voltage and battery voltage match information on the EPIC Series Console 2.0 nameplate (Section 3.6).
Installation and connections must be made by a professional electrician. Ensure that the console is properly grounded.

Start up as follows:

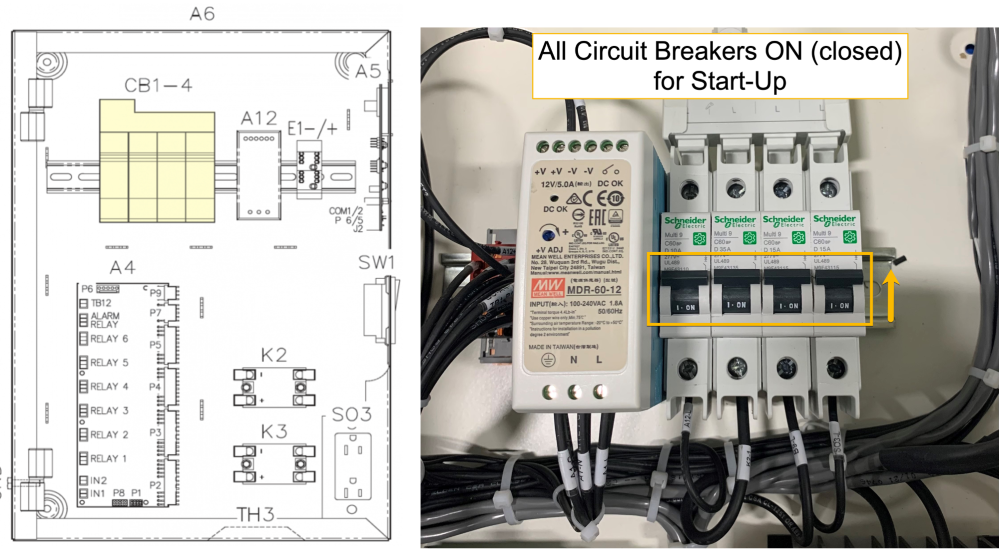

  1. Turn ON (close) all AC input breakers located inside the EPIC Controller – as seen in the circuit diagram and photo below.
  2. Turn ON battery charger breakers (if applicable).
  3. You will briefly see EPIC Controller version, followed by the HOME screen which displays the current battery and electric bay temperatures. The GREEN Hindle Health System light should be lit.
    1. If you see a RED Hindle Health System light, or the display does not light, turn off all AC breakers and recheck connections, then repeat steps 1-3.
    2. If you continue to receive a RED Hindle Health System light or still do not have a lit display, please call 610-330-9000 for technical support.
