EPIC Series Console 2.0 Operations

6.3. Configuring Basic Settings

This section details the configuration of basic settings — as listed in the Startup Sequence & Factory Settings, Section 6.1.1. Most of these settings may be adjusted if necessary as follows:

How to Configure Basic Settings

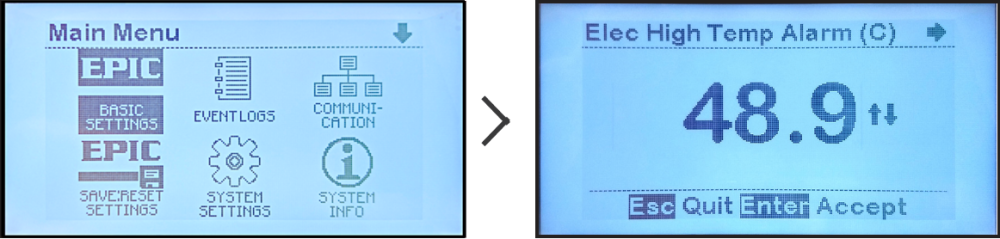

To enter Basic Settings mode, select MENU > BASIC SETTINGS. EPIC will display the first parameter that may be adjusted and its current numerical setting.

To accept the value for a parameter, press EDIT/ENTER, or use the RIGHT or LEFT arrow key to move to another parameter.

To change a parameter, do the following:

  • Press UP or DOWN to change setting value. To increase or decrease in value rapidly, press and hold the UP or DOWN button.
  • Once desired setting is displayed, press EDIT/ENTER to store it.

Clicking on each parameter below will reveal a screenshot of and additional details about the parameter:

Electrical Bay High Temp Alarm
The first parameter to display is the Electrical Bay High Temp Alarm. This is the temperature within the electrical bay at which the “Electrical Bay Overtemp Alarm” becomes active. Default is 48.9°C or 120°F. Press the RIGHT key to see another parameter.

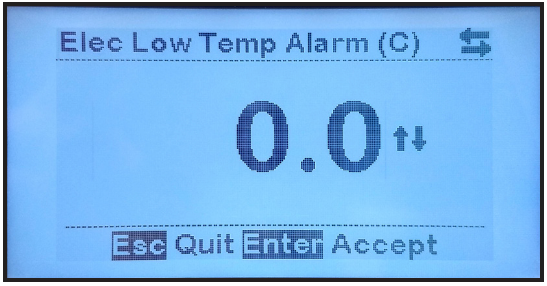

Electrical Bay Low Temp Alarm
Temperature within the electrical bay at which the “Electrical Bay Low Temperature Alarm” becomes active. Default is 0°C or 32°F.

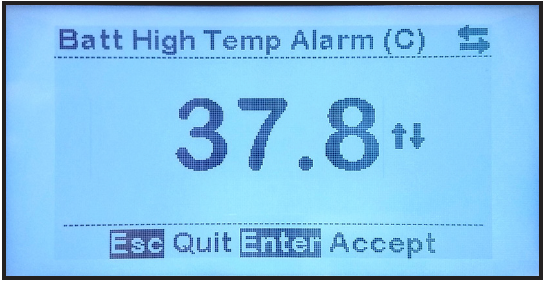

Battery Bay High Temp Alarm
Temperature within battery bay at which “Battery Bay Overtemp Alarm” becomes active. Default is 37.8°C or 100°F.

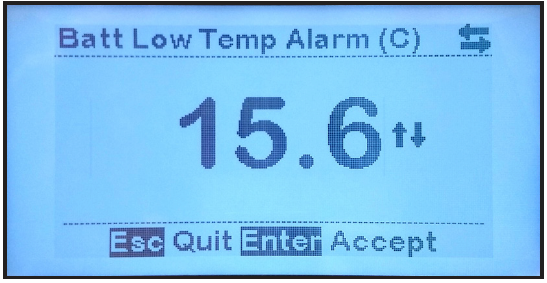

Battery Bay Low Temp Alarm
Temperature within battery bay at which “Battery Bay Low Temperature Alarm” becomes active. Default is 15.6°C or 60°F.
Battery Bay Target
Target temperature for battery bay. This value is not set; it is calculated as the midpoint between the Battery Bay High Set Point and Battery Bay Low Set Point. If the target temperature desired is 23°C (73.4°F), the user might achieve this by selecting low and high set points, discussed below, so the temperature in the console can fluctuate within a comfortable range, such as the default 21°C to 25°C (70°F to 77°F) or slightly larger, without forcing the air conditioner and/or heater to cycle too often, or possibly compete with one another. !https://manula.r.sizr.io/large/user/19367/img/spacer-800×6.png!
Battery Bay High Set Point
Temperature within battery bay at which air conditioner turns on. Default is 25°C or 70°F.
Battery Bay Low Set Point
Temperature within battery bay at which heater turns on. Default is 21°C or 70°F. After setting or accepting this parameter’s value, you will return to the Main Menu.
