DNP Ethernet protocol requires configuration of a number of DNP specific parameters.

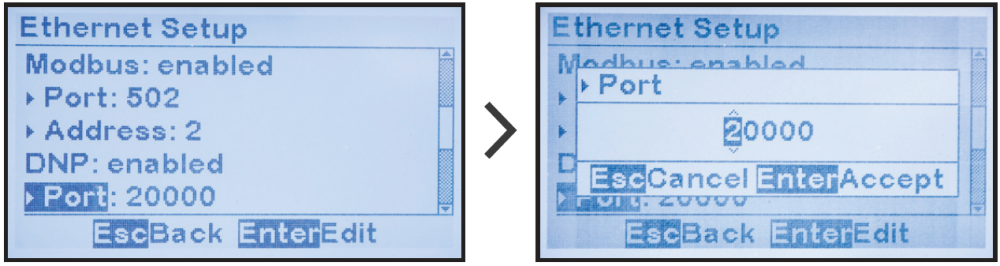

To change DNP Ethernet Port number:
MENU > COMMUNICATION > “Ethernet setup” (as shown in Section 4.2) > “Port:” (located after “DNP: enabled”) > change digits

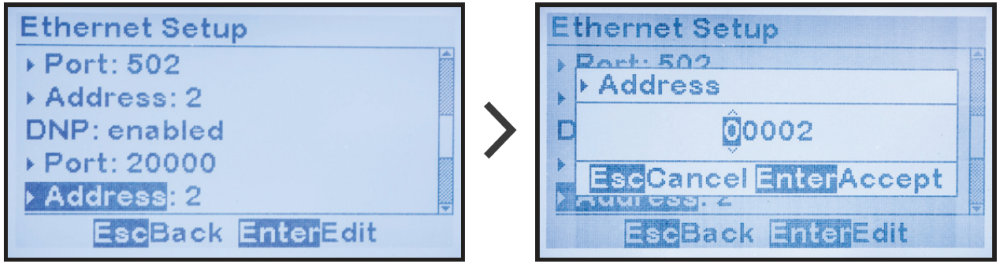

To change DNP source address for the Ethernet interface:
MENU > COMMUNICATION > “Ethernet setup” (as shown in Section 4.2) > “Address:” (located after “DNP: enabled”) > change digits

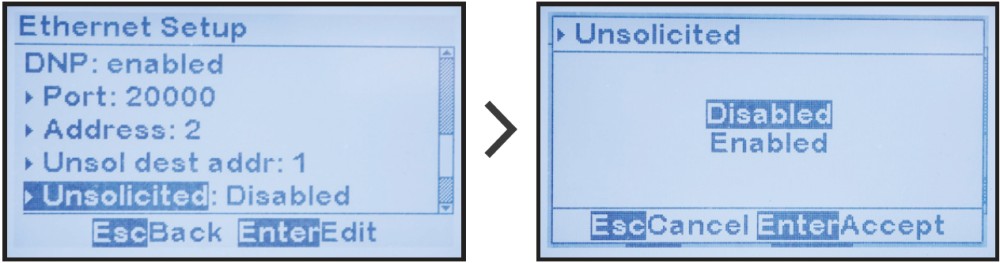

To enable or disable DNP unsolicited responses for the Ethernet interface:
MENU > COMMUNICATION > “Ethernet setup” (as shown in Section 4.2) > “Unsolicited:” (located after “DNP: enabled”) > select “enabled” or “disabled”

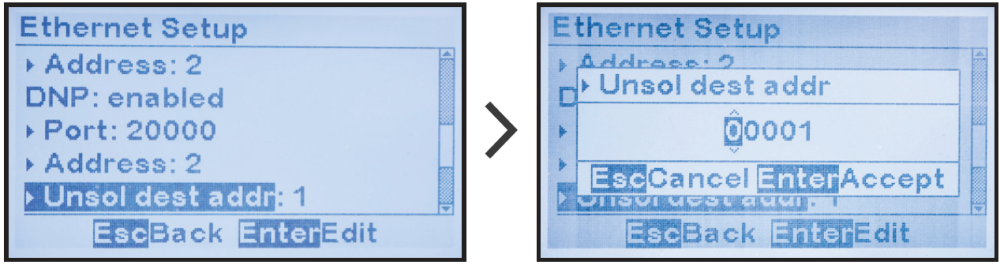

To change DNP unsolicited response destination address:
MENU > COMMUNICATION > “Ethernet setup” (as shown in Section 4.2) > “Unsol dest addr:” (located after “DNP: enabled”) > change digits

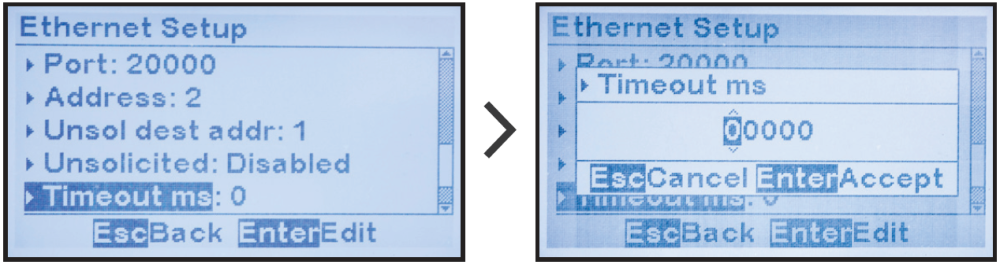

To change DNP unsolicited response acknowledgement timeout:
MENU > COMMUNICATION > “Ethernet setup” (as shown in Section 4.2) > “Timeout ms:” ( located after “DNP: enabled”) > change digits

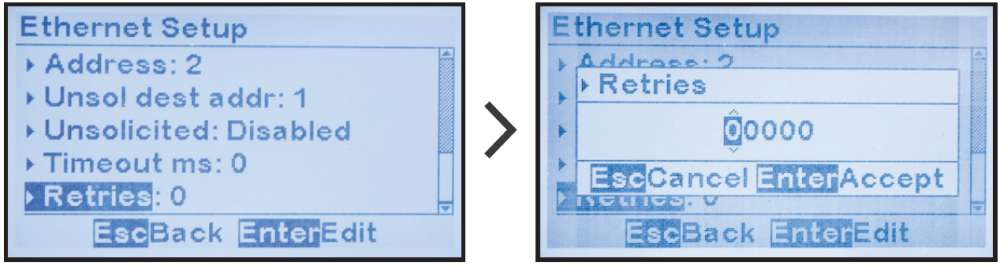

To change DNP number of unsolicited response retries for the Ethernet interface:
MENU > COMMUNICATION > “Ethernet setup” as shown in Section 4.2) > “Retries:” ( located after “DNP: enabled”) > change digits
