When configuring a PORT, set the protocol first. If a serial PORT is not assigned a protocol, “(none)” will appear next to the PORT name. If the Serial PORT is already assigned a protocol, see Section 4.1.2 for instructions on how to change the PORT configuration.

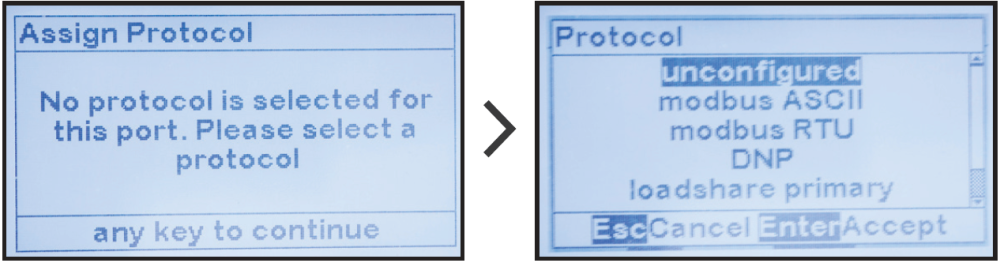

To assign a protocol to an unassigned serial PORT: MENU > COMMUNICATION (as shown in Section 4) > select unassigned port > any key > select protocol
