DNP Ethernet protocol requires configuration of the parameters described in the toggles below. Click on each for instructions that include screenshots:
- DNP Ethernet Port Number
- To change the DNP Ethernet Port number: MENU > COMMUNICATION > “Ethernet setup” (as shown in Section 10.3.1 ethernet-adapter}) > “Port:” (located after “DNP: enabled”) > change digits
![]()
![]()
- DNP Source Address
- To change the DNP source address for the Ethernet interface: MENU > COMMUNICATION > “Ethernet setup” (as shown in Section 10.3.1 ethernet-adapter}) > “Address:” (located after “DNP: enabled”) > change digits
![]()
![]()
- Enable/Disable DNP Unsolicited Responses
- To enable or disable DNP unsolicited responses for the Ethernet interface: MENU > COMMUNICATION > “Ethernet setup” (as shown in Section 10.3.1 ethernet-adapter}) > “Unsolicited:” (located after “DNP: enabled”) > select “enabled” or “disabled”
![]()
![]()
- DNP Unsolicited Response Destination Address
- To change the DNP unsolicited response destination address: MENU > COMMUNICATION > “Ethernet setup” (as shown in Section 10.3.1 ethernet-adapter}) > “Unsol dest addr:” (located after “DNP: enabled”) > change digits
![]()
![]()
- DNP Unsolicited Response Acknowledgment Timeout
- To change the DNP unsolicited response acknowledgement timeout: MENU > COMMUNICATION > “Ethernet setup” (as shown in Section 10.3.1 ethernet-adapter}) > “Timeout ms:” ( located after “DNP: enabled”) > change digits
![]()
![]()

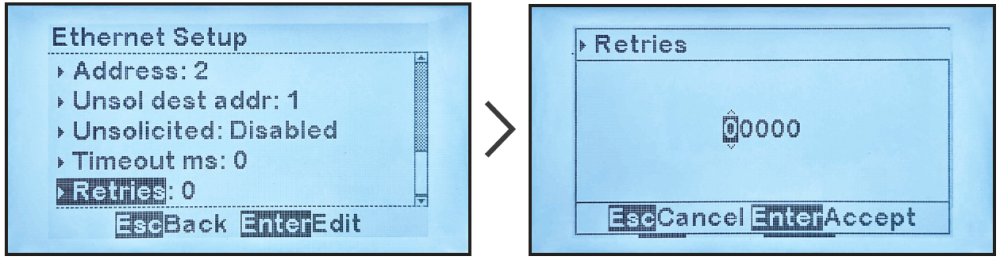

- DNP Number of Unsolicited Response Retries for Ethernet Interface
- To change the DNP number of unsolicited response retries for the Ethernet interface: MENU > COMMUNICATION > “Ethernet setup” (as shown in Section 10.3.1 ethernet-adapter}) > “Retries:” (located after “DNP: enabled”) > change digits
![]()
![]()
