Several Ethernet configuration parameters are used by all protocols; other parameters are used only by specific protocols. This section specifies configuration of parameters used by all protocols.
Click on any of the toggles below for instructions on changing a specific parameter.
- IP Address

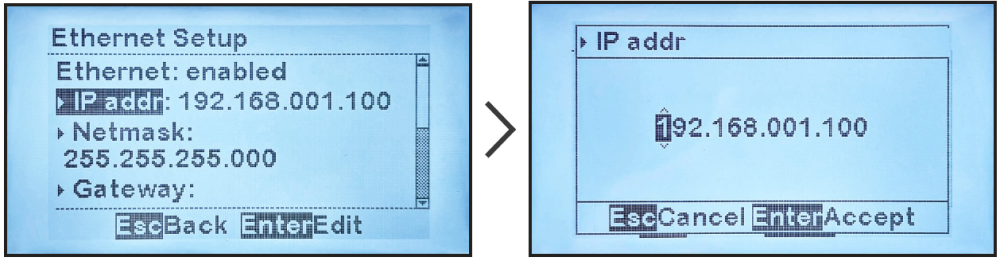

- To change the IP address: MENU > COMMUNICATION > “Ethernet setup” (as shown in Section 10.3.1) > “IP addr:” > change digits
![]()
![]()
- Netmask

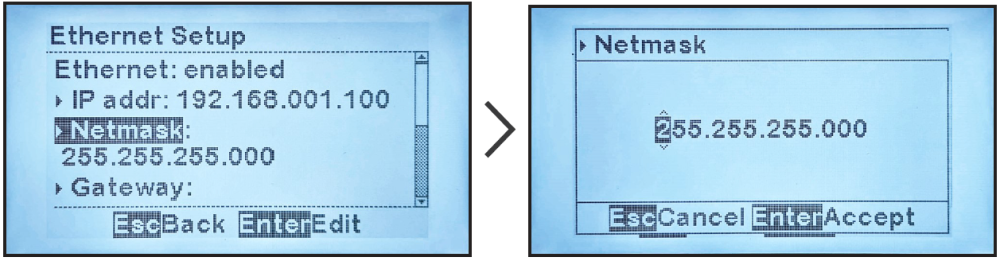

- To change the Netmask: MENU > COMMUNICATION > “Ethernet setup” (as shown in Section 10.3.1) > “Netmask:” > change digits
![]()
![]()
- Gateway

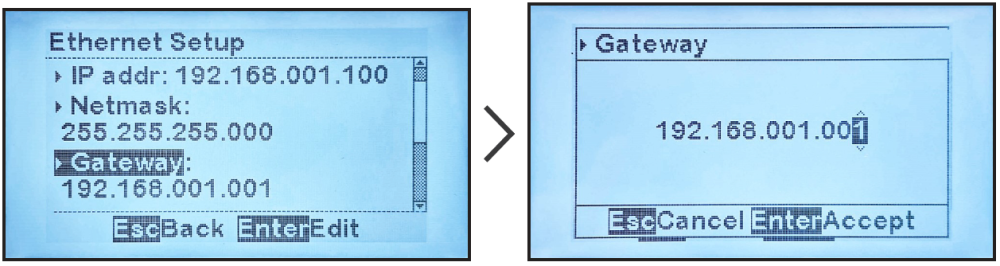

- To change the Gateway: MENU > COMMUNICATION > “Ethernet setup” (as shown in Section 10.3.1) > “Gateway:” > change digits
![]()
![]()
