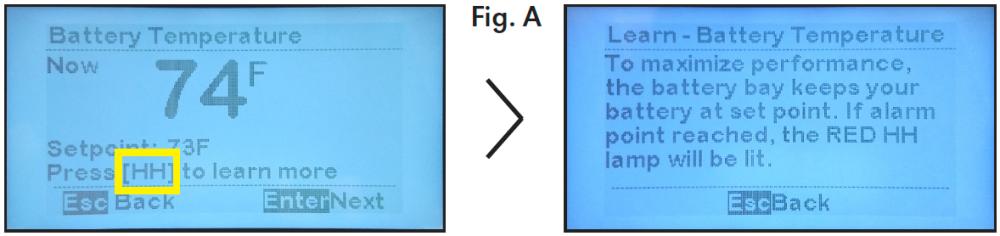

The second test screen displays the current temperature of the battery along with the setpoint temperature which the console aims to maintain. Further explanation of why this test is performed is available by pressing the [HH] button (Fig. A). Press ENTER to proceed.
The HHS now asks you if the temperature setpoint that displays is acceptable. Based on your answer, you will proceed as follows:

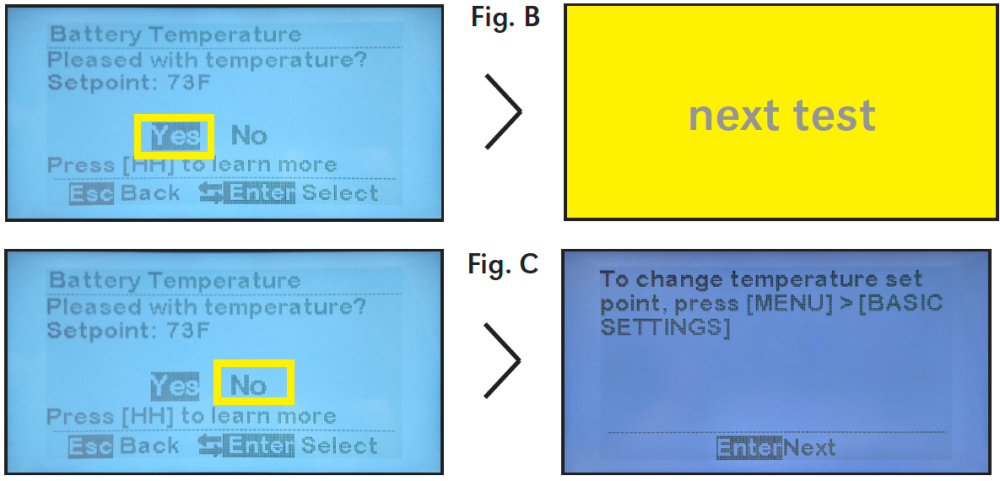

- “Yes”: Setpoint is acceptable. Test passes. Press ENTER to continue to next test (Fig. B).
- “No”: Setpoint needs to be changed. Press ENTER to receive further instructions about how to change the temperature setpoint (Fig. C). Any change should be made after you have finished running or have terminated the Hindle Health System tests.
