MotionLinx-IO

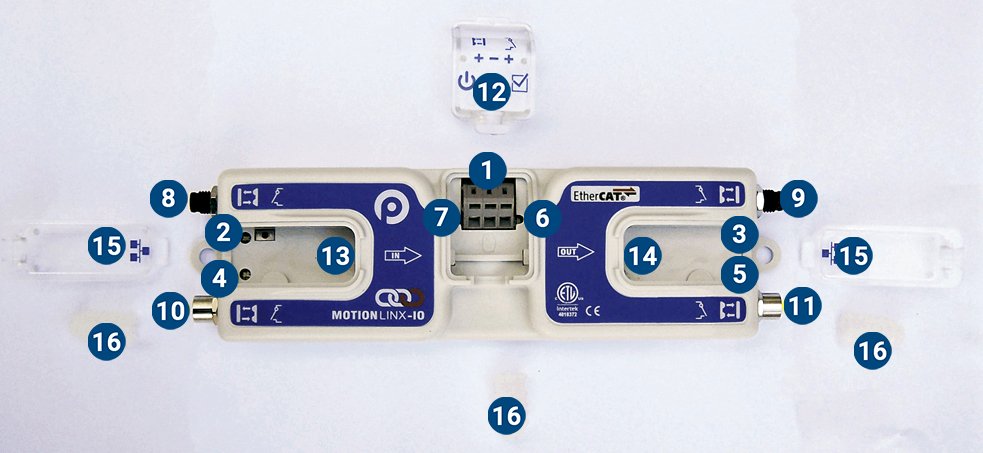

Item	Description
	24VDC Power Terminals with separate connections for Logic and Motors
& & &	IO Port LED status indicators
	Module EtherCAT Status LED Indicator
	Module Power LED Indicator
&	Left and Right Male IO Ports – 4-pin M8 style connector
&	DIP Switch and LED Hinged Clear Protective Cover
	Removable IP54 Power Compartment Cover
&	EtherCAT Link-IN and Link OUT – RJ-45 style network connection between modules including LED Indicators
	Removable IP54 RJ-45 Port Compartment Cover – Left and Right
*	IP54 Protection Shrouds for Ethernet cabling and power wiring
