MotionLinx-Ai

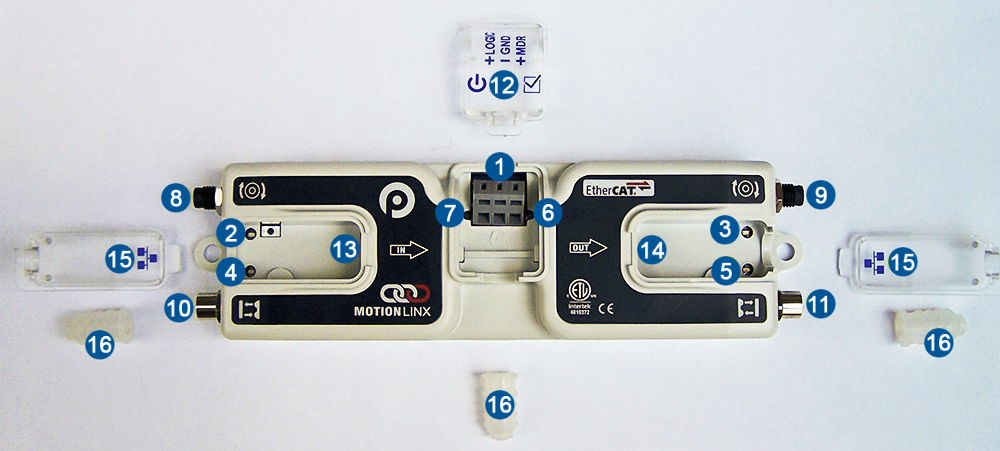

Item	Description
	24VDC Power Terminals with separate connections for Logic and Motors
&	Motor Left LED & Motor Right LED – Motor status indicators
&	Left Sensor & Right Sensor Status LED Indicators
	Module EtherCAT Status LED Indicator
	Module Power LED Indicator
&	Motor Left and Motor Right Port – 4-pin M8 style connector for Senergy-Ai Motor connection
&	Sensor Left and Sensor Right Port – M8 style connector for zone photo-sensor connection
	Removable IP54 Power Compartment Cover
&	Link-IN and Link OUT – RJ-45 style network connection between modules including LED Indicators
	Removable IP54 RJ-45 Port Compartment Cover – Left and Right
*	IP54 Protection Shrouds for Ethernet cabling and power wiring
